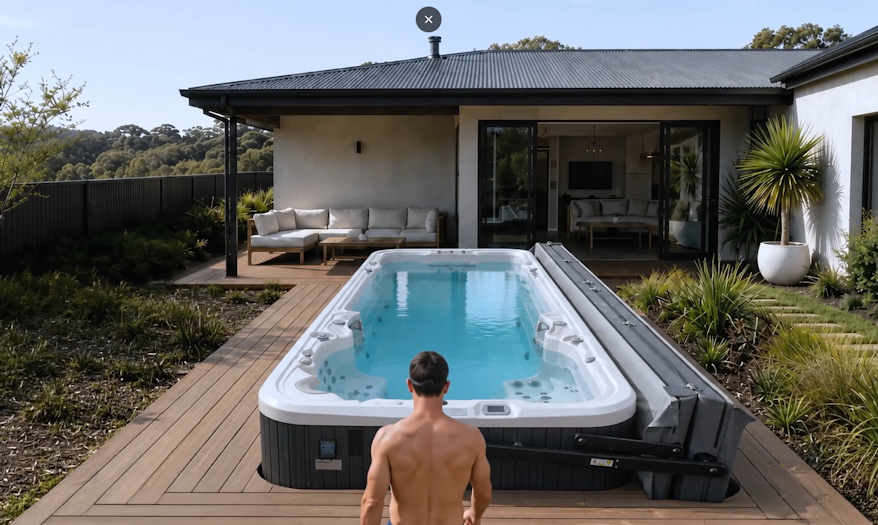

Aqualap™ Swim Spa

Vortex Spas™
Image may show optional extras.
From
$35,990

Seating

From 4 adults

Dimensions

From 5.90 x 2.30 x 1.30/1.50m

Jets

Up to 81

Why Buy an Aqualap™ Swim Spa?

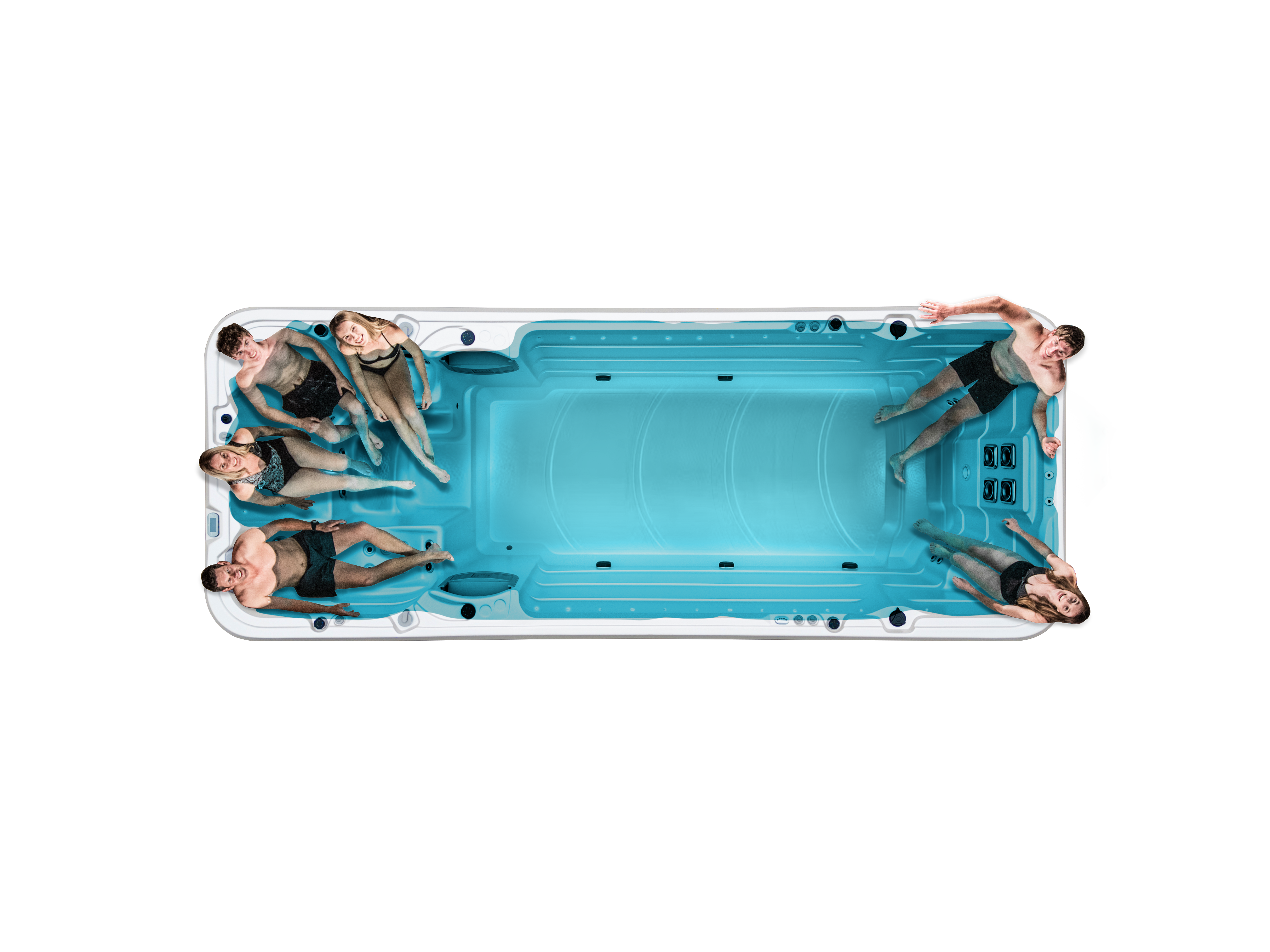

The Vortex™ Aqualap™ is the ultimate spacious swim spa for both high intensity swimming and fitness, and exceptional family fun.

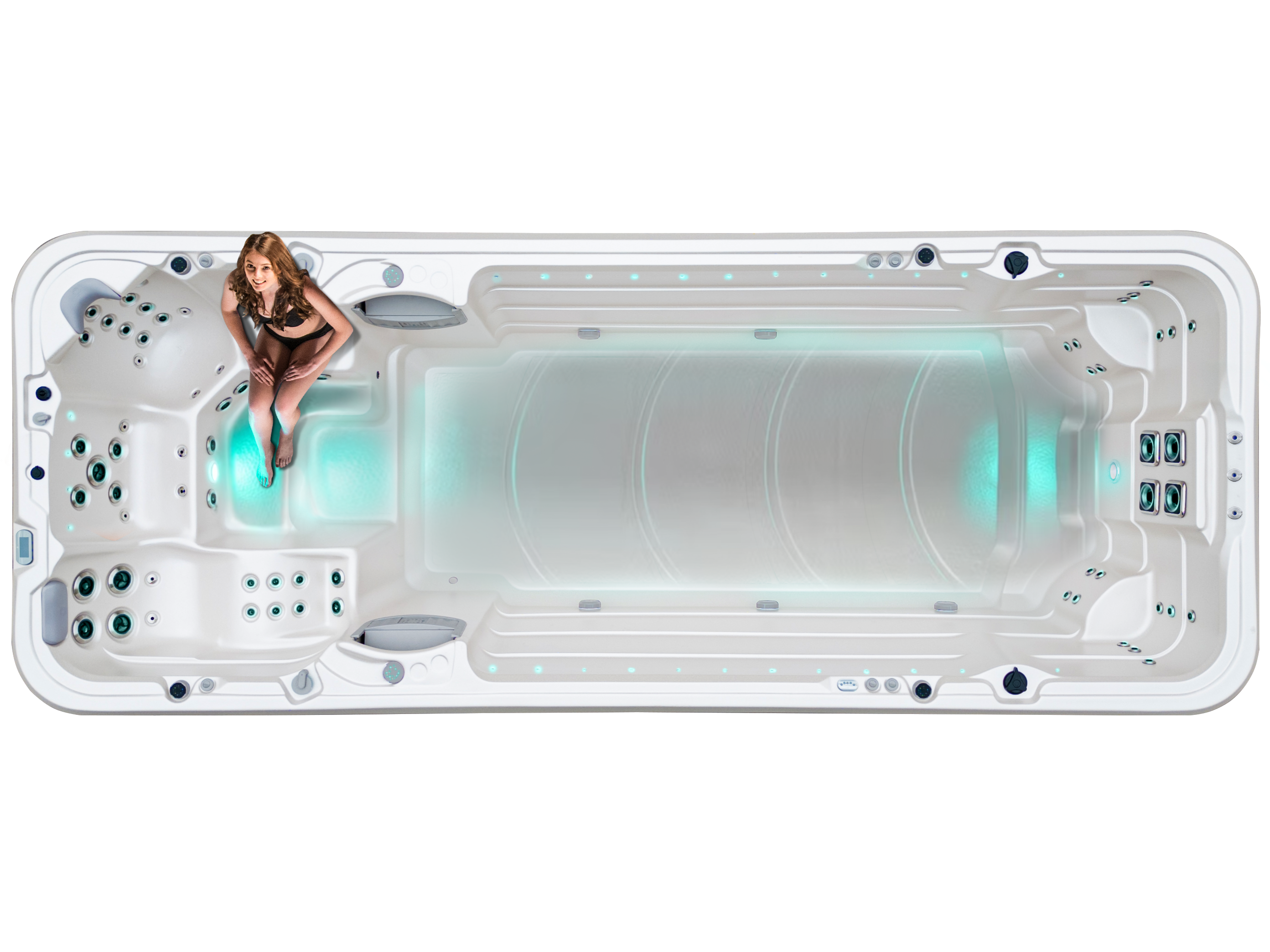

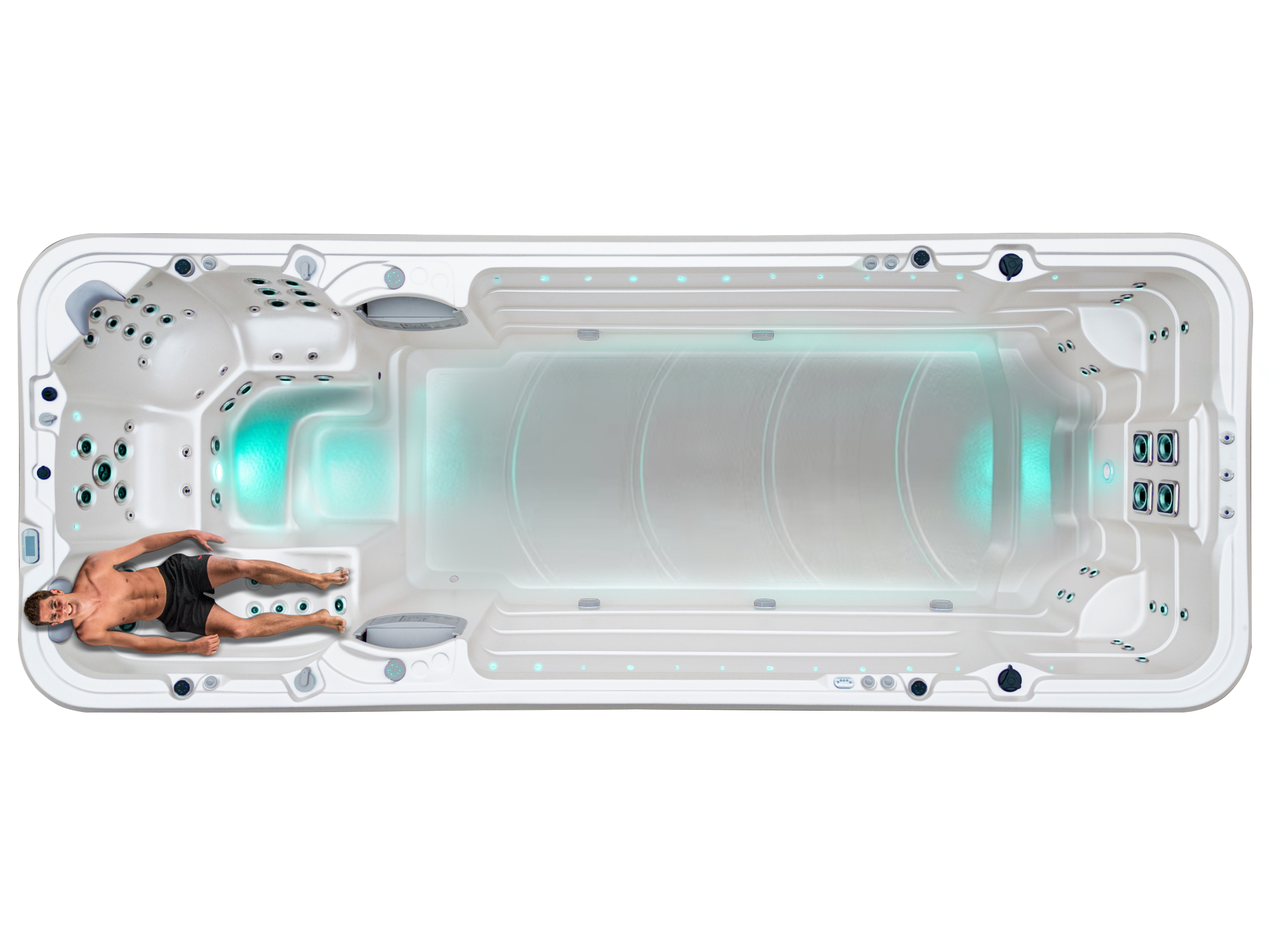

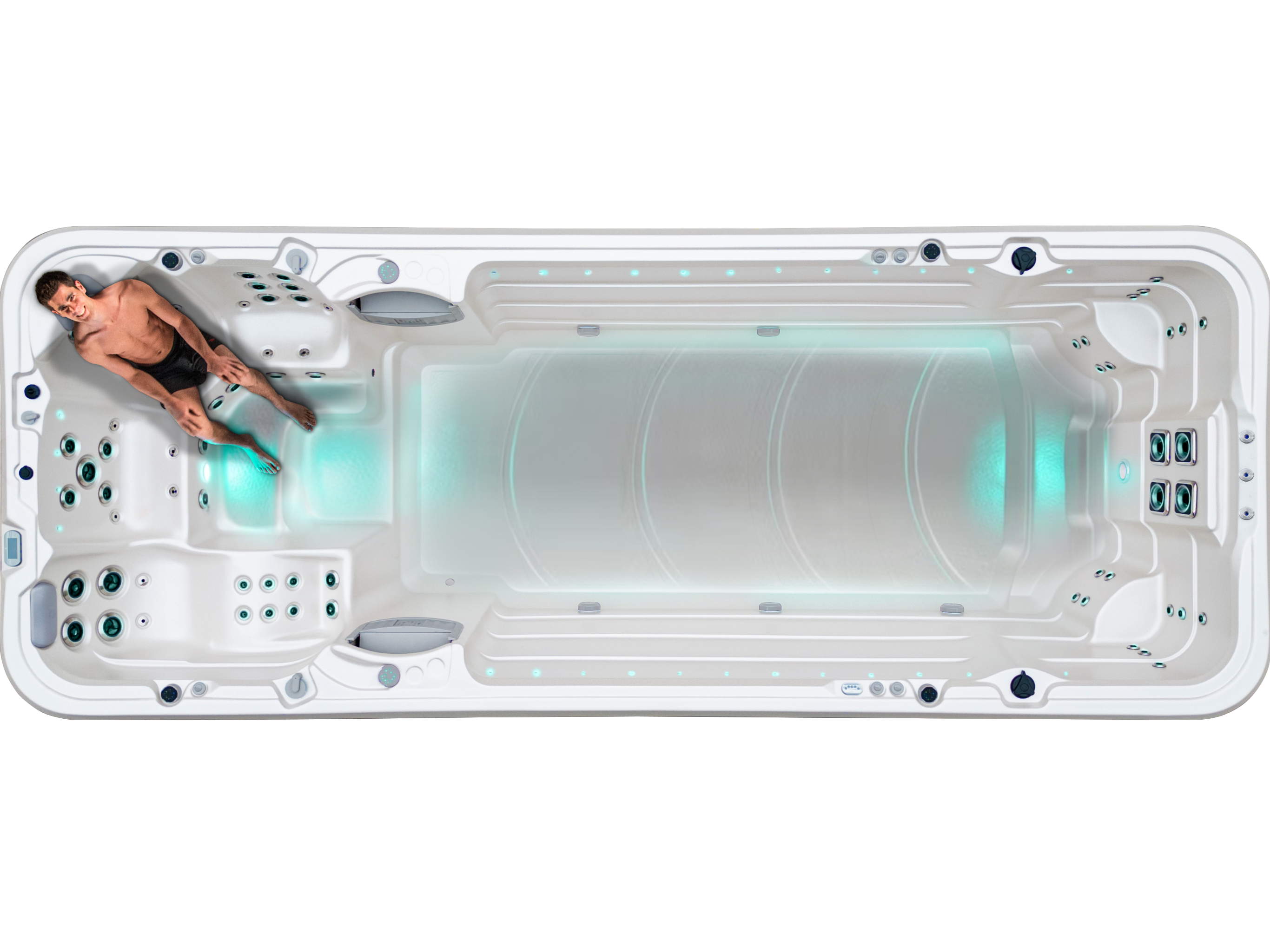

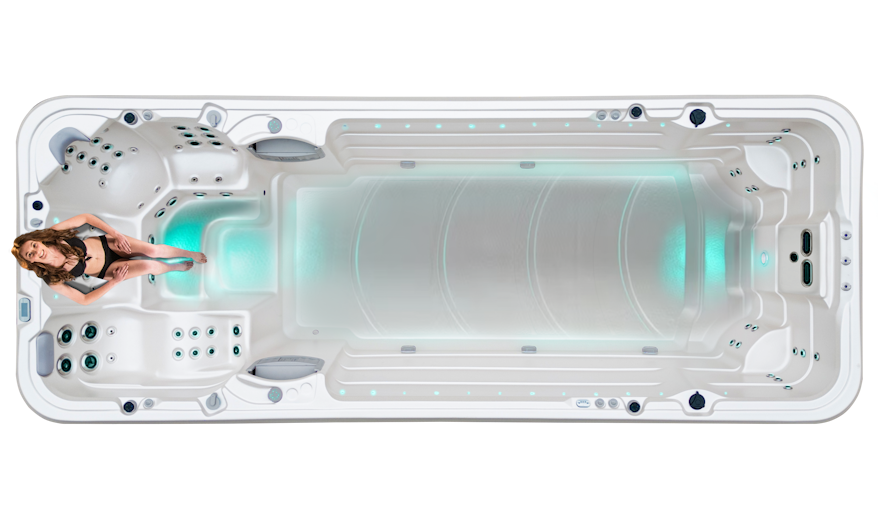

This deluxe model includes the signature Vortex™ hydromassage lounger, a soothing neck and therapy seat, and an exclusive shiatsu back massage seat designed to alleviate tension and rejuvenate your body. The Aqualap™ comes in four jet configurations to match your preferred swim resistance level – from leisurely swims to rigorous workouts.

Whether it's high-powered training, family entertainment, or indulgent relaxation, the versatile Aqualap™ can do it all!

Image may show optional extras.

Aqualap™ Swim Spa Features

ClearLift™ Automatic Cover (Optional)

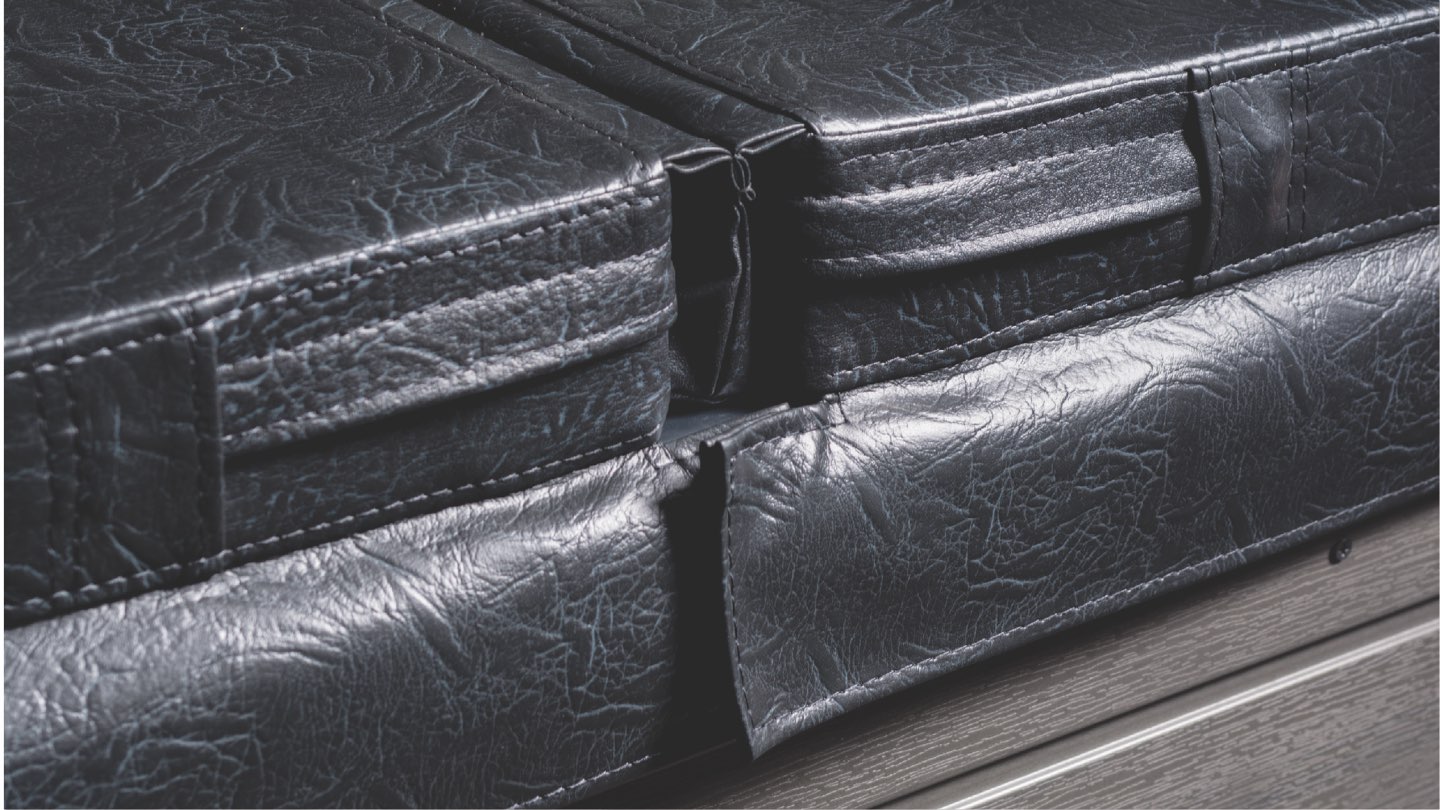

ClearLift™ is a groundbreaking, patent-pending motorized system designed for effortless lifting of heavy swim spa covers with just a turn of a key. Every Vortex Spa and Swim Spa is equipped with a durable hard cover that not only retains heat but also prevents dirt, debris, and unauthorized access by children. Unfortunately, standard hard covers can be cumbersome due to their size, with each panel measuring up to one meter by 2.3 meters and weighing over 15 kg. ClearLift™ simplifies the process, enabling quick and easy access to your swim spa, ensuring you enjoy and utilize it more frequently. ClearLift™ is an optional upgrade.

SpaNet™ Heat Pump saves you up to 75% on heating costs!

Choose a SpaNet™ SV Series heat pump with your swim spa and save up to 75% on heating costs. Combined with Vortex™ Swim Spas's energy-efficient features like dynamic thermal tuning, a programmable filtration pump, and our 8-layer Thermolock™ insulation – this setup ensures the lowest operational costs for your swim spa's life.

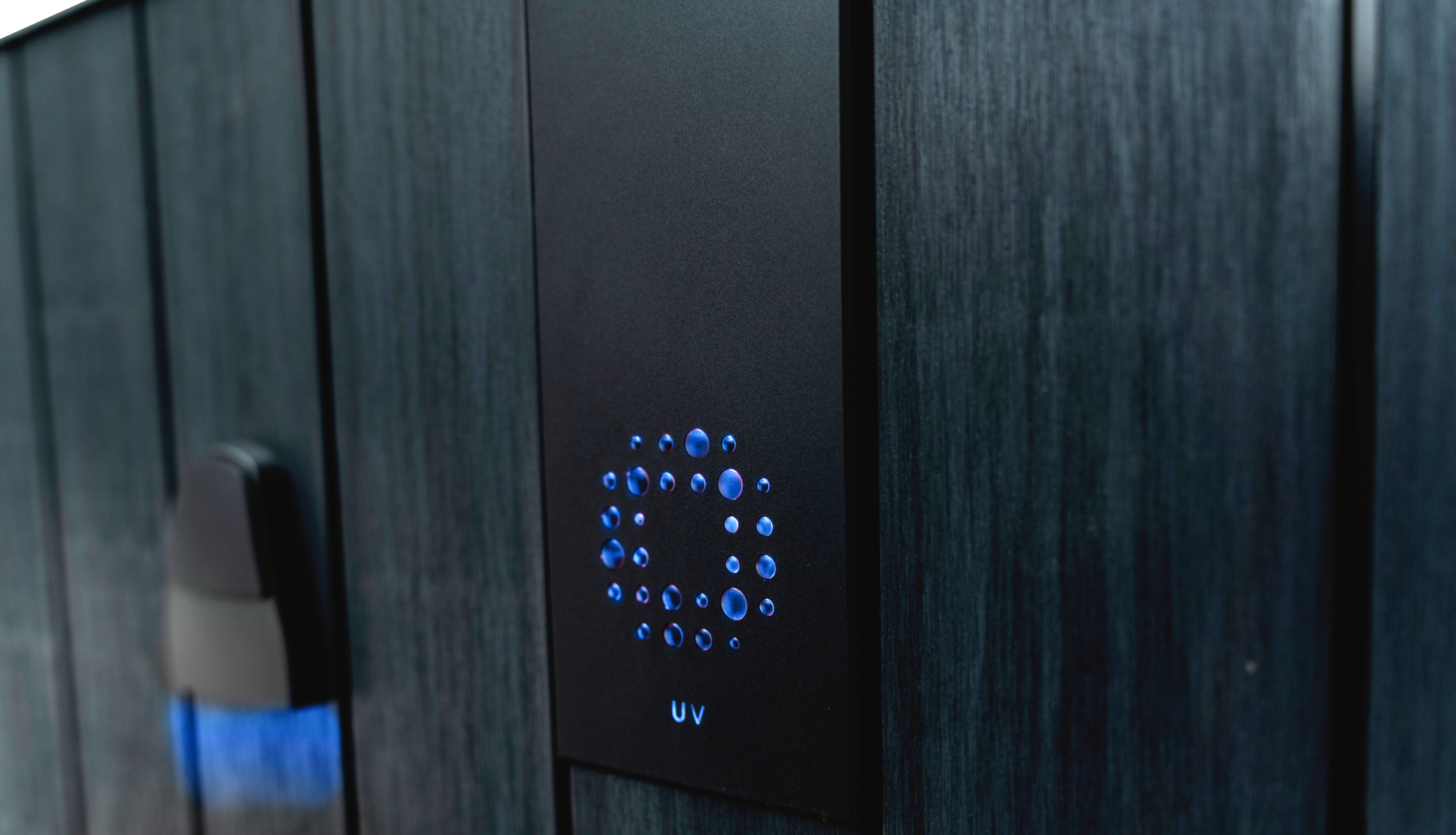

Purezone AOS™ delivers crystal clear water with less sanitiser

Experience superior water clarity and use less sanitiser with a Purezone™ AOS water care system. Purezone AOS™, or Advanced Oxidation System, is an automatic sanitising system designed for swim spas and spa pools. It combines UV-Ozone technologies for crystal clear, safe spa water and easy water maintenance. Available from 2023 on Vortex™ Spas and Swim Spas.

We put your safety first

Vortex™ Spas prioritises safety by including features some brands overlook that exceed stringent Australian safety standards. For example, every Vortex™ Spa and Swim Spa includes a safety bypass plumbing system that directs suction from the pump to bypasses in the footwell should filters become blocked or clogged. This is just one reason why Vortex™ Spas is the safest choice for you and your family.

Crystal clear, no-bull warranties for peace of mind

At Spa World, we are committed to excellence in all areas of our business, including aftercare service and warranties. As a Spa World customer and Vortex™ Swim Spa owner, you can have peace of mind knowing you will recieve outstanding service and an unmatched warranty package, with clear and comprehensive details about its coverage.

Colours to Suit Your Home

A range of stunning colours available.

Shell Colours

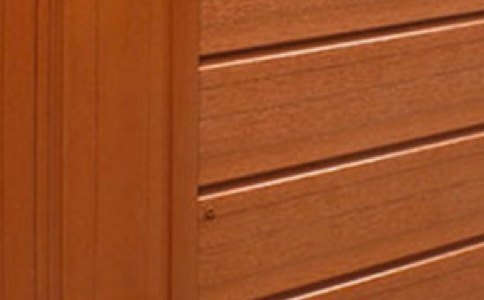

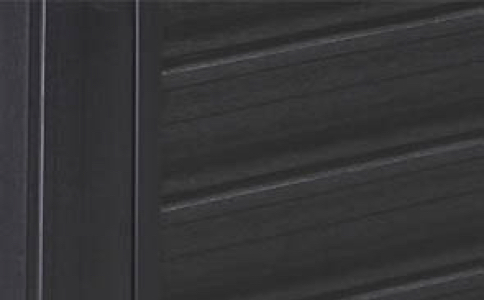

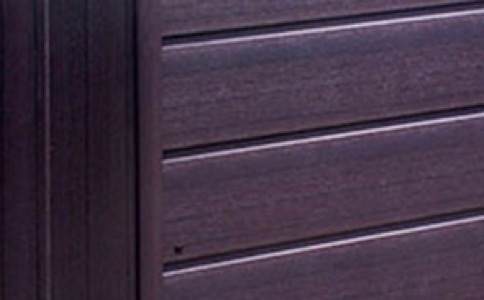

Cabinet Colours

Compare Aqualap™ models

The Aqualap™ comes in four variations. Each model has exactly the same seating layout and features. However, the swim resistance zone has additional jets in the Pro, Pro+ and Extreme.

Note: The electrical requirements for each model are: Plunge 15amp, Pro and Pro+ 32amp, and Extreme 45amp.

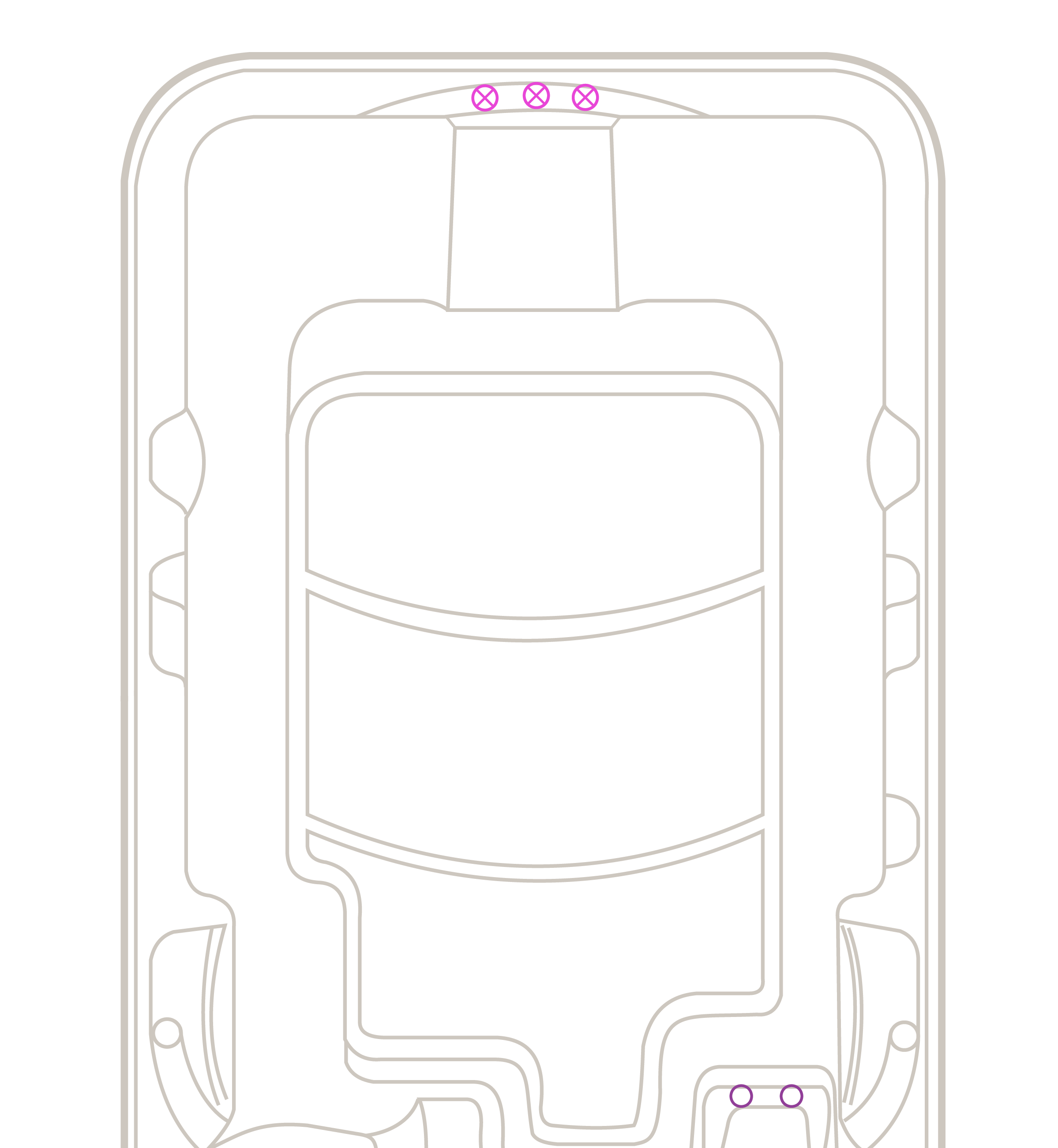

  • Vortex Aqualap Plunge jet layout

    Aqualap Plunge™

    The Aqualap Plunge™ is perfect for family fun and ideally suited for standing fitness and aquasize for those who want to keep fit or recover. If you want to swim, the Pro, Pro+ or Extreme could be better suited for you, depending on your swimming ability.

    • No swim jets
    • 1 pump
  • 2024 Vortex Aqualap Pro jet layout

    Aqualap Pro™

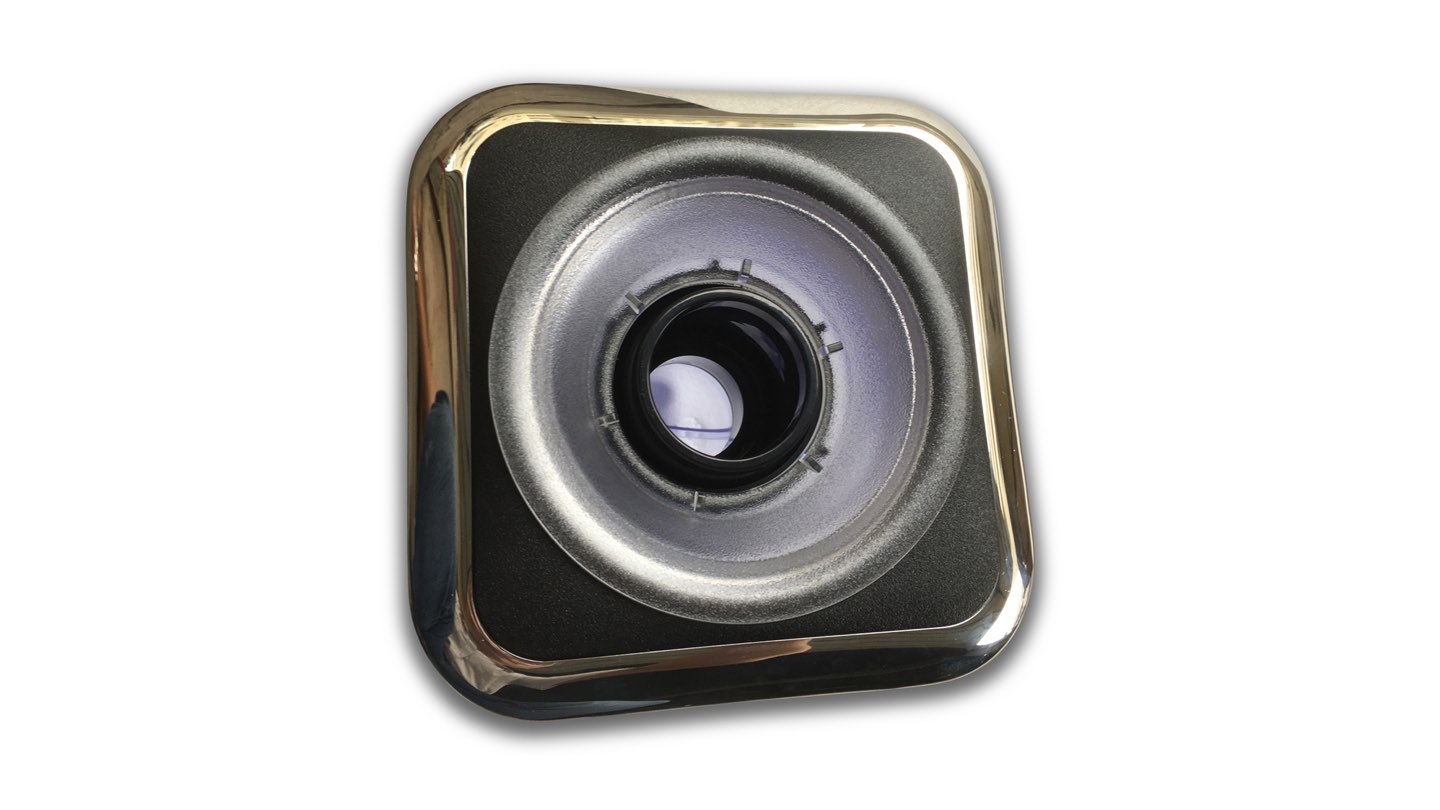

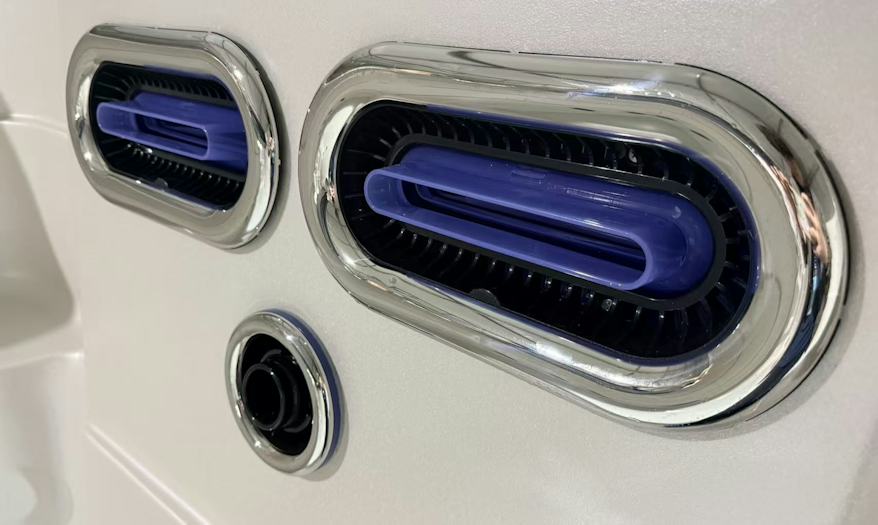

    The Aqualap Pro™ is a step up from the Plunge with the added resistance of two powerful 150mm swim jets creating a current strong enough to swim, walk or jog against. This model is ideal for up to intermediate level swimming. More advanced swimmers may want to go for the Pro+ or Extreme models.

    • 2 swim jets
    • 2 pumps
  • Vortex Aqualap Pro Plus jet layout

    Aqualap Pro+™

    Powered by three pumps, the Pro+ adds another level of resistance to your workout with three 150mm swim jets to step up your training. This model is perfect for every swimmer from beginner up to advanced as well as water joggers and those using aquatic fitness.

    • 3 swim jets
    • 3 pumps

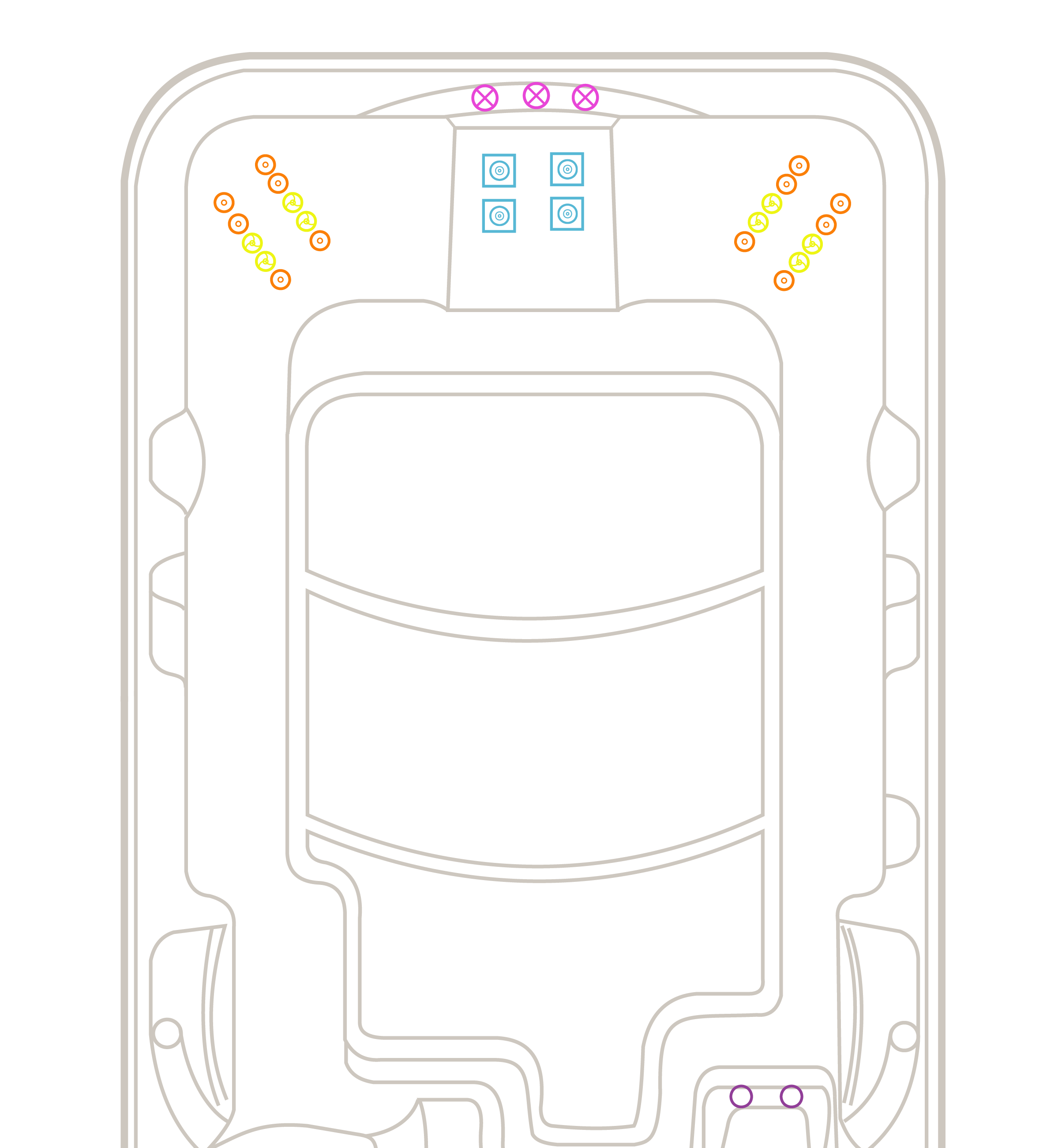

  • 2024 Vortex Aqualap Extreme jet layout

    Aqualap Extreme™

    The most powerful of the Aqualap™ models, the Extreme adds some serious resistance to your swim training regime with four swim jets for advanced fitness training. With it’s variable Vortex™ swim resistance system, the Extreme is perfect for beginners all the way up to athletes. If you are a swimmer that’s serious about your training, the Extreme is for you.

    • 4 swim jets
    • 4 pumps

Compare Aqualap™ depths

The Aqualap™ Swim Spa is now available with extra depth.

You can select the standard water depth of 1.3 metres or the 1.5 metre extra deep Aqualap XD™ Swim Spa. Taller people or those who like a deeper pool for swim or play, should seriously consider this option.

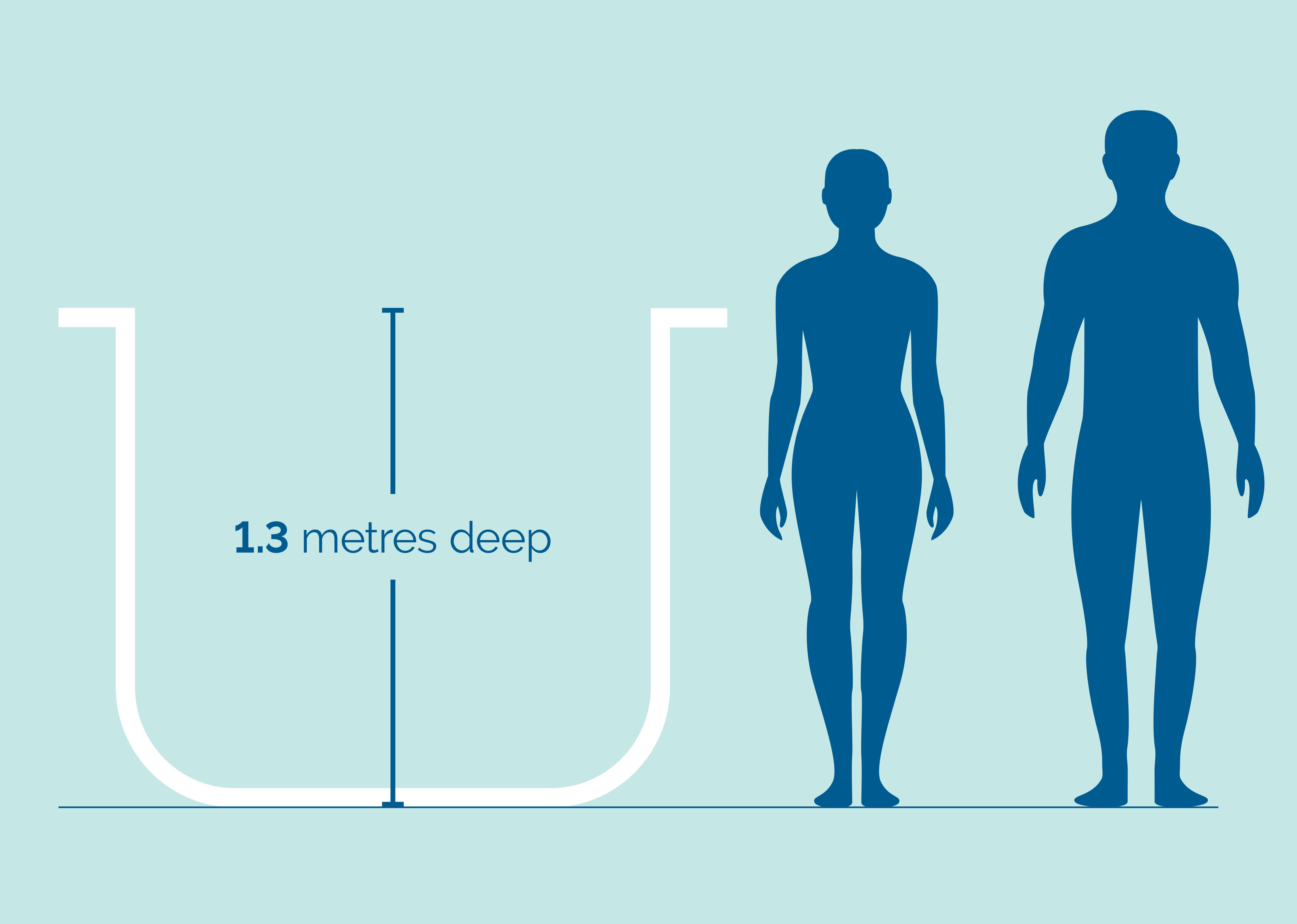

  • Aqualap™ 1.3m

    The 1300mm deep model has the same seating configuration as the 1500mm deep XD model and boasts these advantages:

    • less water so it costs less to heat and maintain
    • lower price
    • easier access

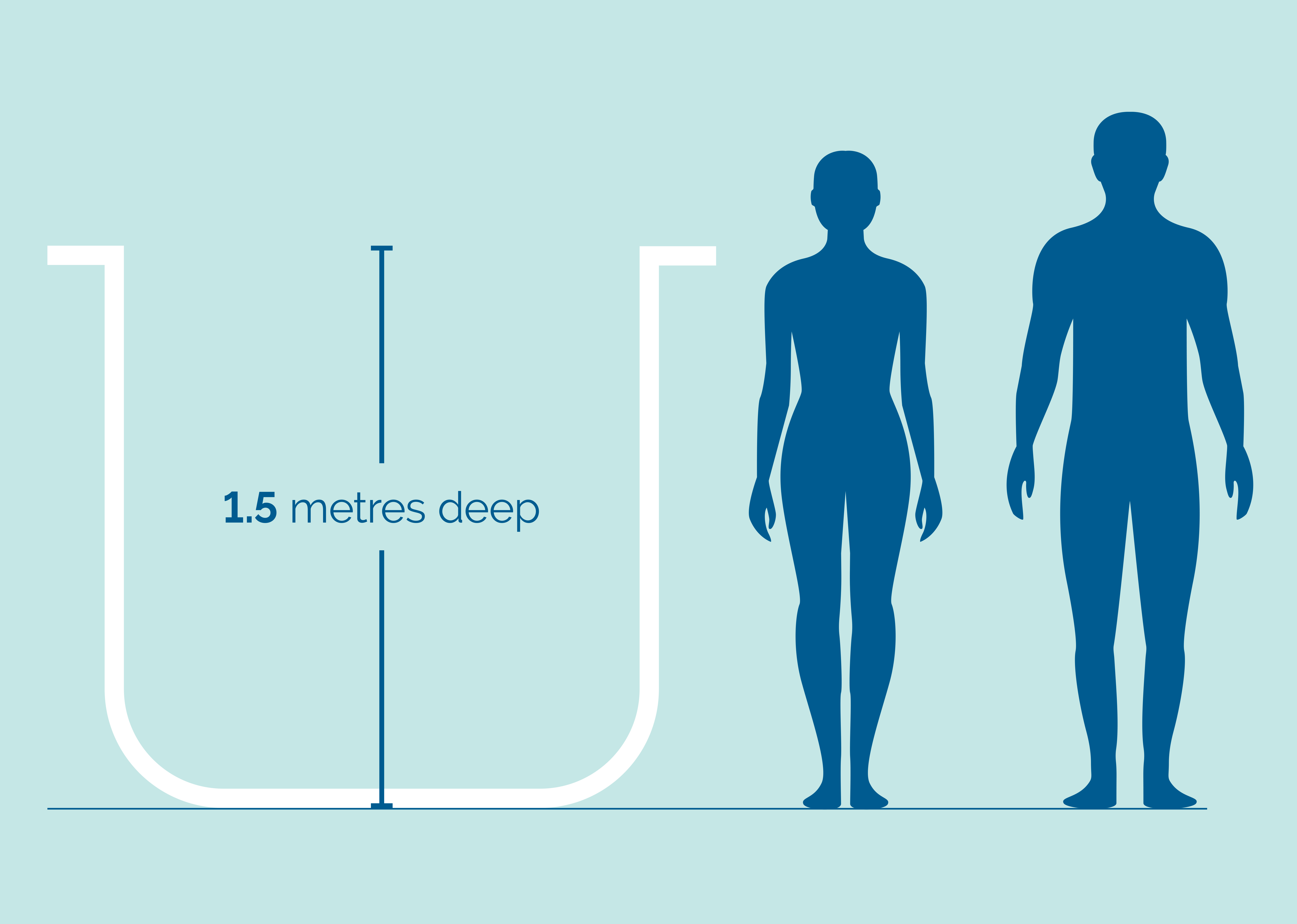

  • Aqualap XD™ 1.5m

    The XD model has the same seating configuration as the 1300mm deep model but the 1500mm deep XD upgrade provides an added 200mm of of depth and is ideal for those who:

    • are above average in height and are an average to athletic swimmer
    • are above average height and are focused on vertical aquatic fitness
    • have children that love doing bombs

Build your Aqualap™ Swim Spa

From
$35,990
Zip Interest Free Finance*

Specifications

Detailed specifications for the Aqualap™ swim spa.

2.30 m5.90 m

Image may show optional extras.

Plunge

Pro

Pro Plus

Extreme

Plunge XD

Pro XD

Pro Plus XD

Extreme XD

Dry weight1350kg1400kg1450kg1500kg1425kg1475kg1525kg1575kg
Water Capacity8500 litres8500 litres8500 litres8500 litres9720 litres9720 litres9720 litres9720 litres
Filled weight (inc cover)9908.5 kg9958.5 kg10008.5 kg10058.5 kg11203.5 kg11253.5 kg11303.5 kg11353.5 kg
Lift weight1800kg1800kg1800kg1800kg1900kg1900kg1900kg1900kg
Intuitive spa controllerSV3SV3SV3SV4SV3SV3SV3SV4
Control PanelSpaNet® SmartTouch™SpaNet® SmartTouch™SpaNet® SmartTouch™SpaNet® SmartTouch™SpaNet® SmartTouch™SpaNet® SmartTouch™SpaNet® SmartTouch™SpaNet® SmartTouch™
Programmable circulation pump11111111
Jet pumps12341234
Variable speed airblower11111111
Variable output heater5.25 kW5.25 kW5.25 kW5.25 kW3 kW5.25 kW5.25 kW5.25 kW
Electrical requirements32 amps32 amps32 amps40 amps32 amps32 amps32 amps40 amps
Swim End SeatsYesYesYesYesYesYesYesYes
Swim End JetsNoNoNoYesNoNoNoYes

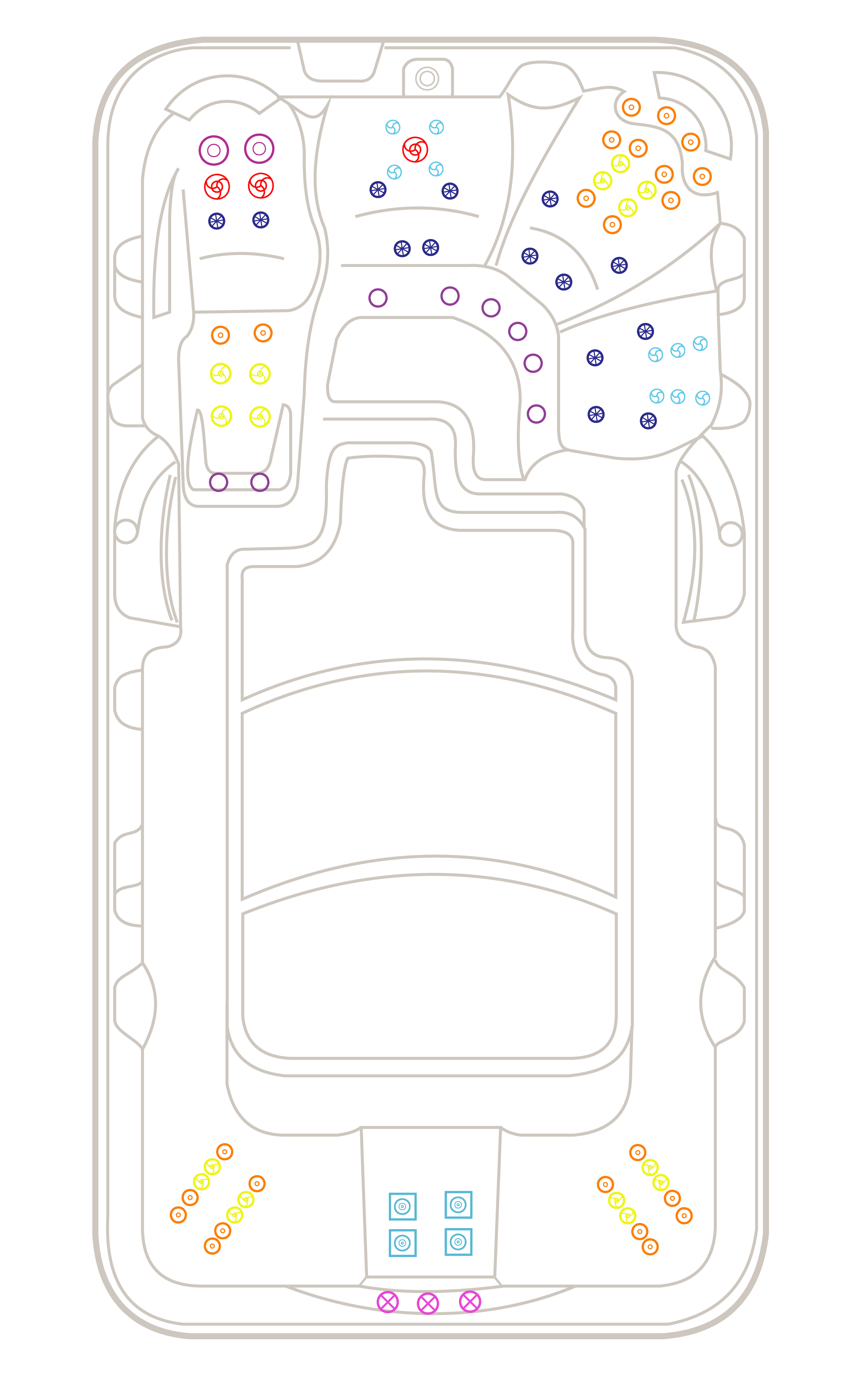

Jet Layout

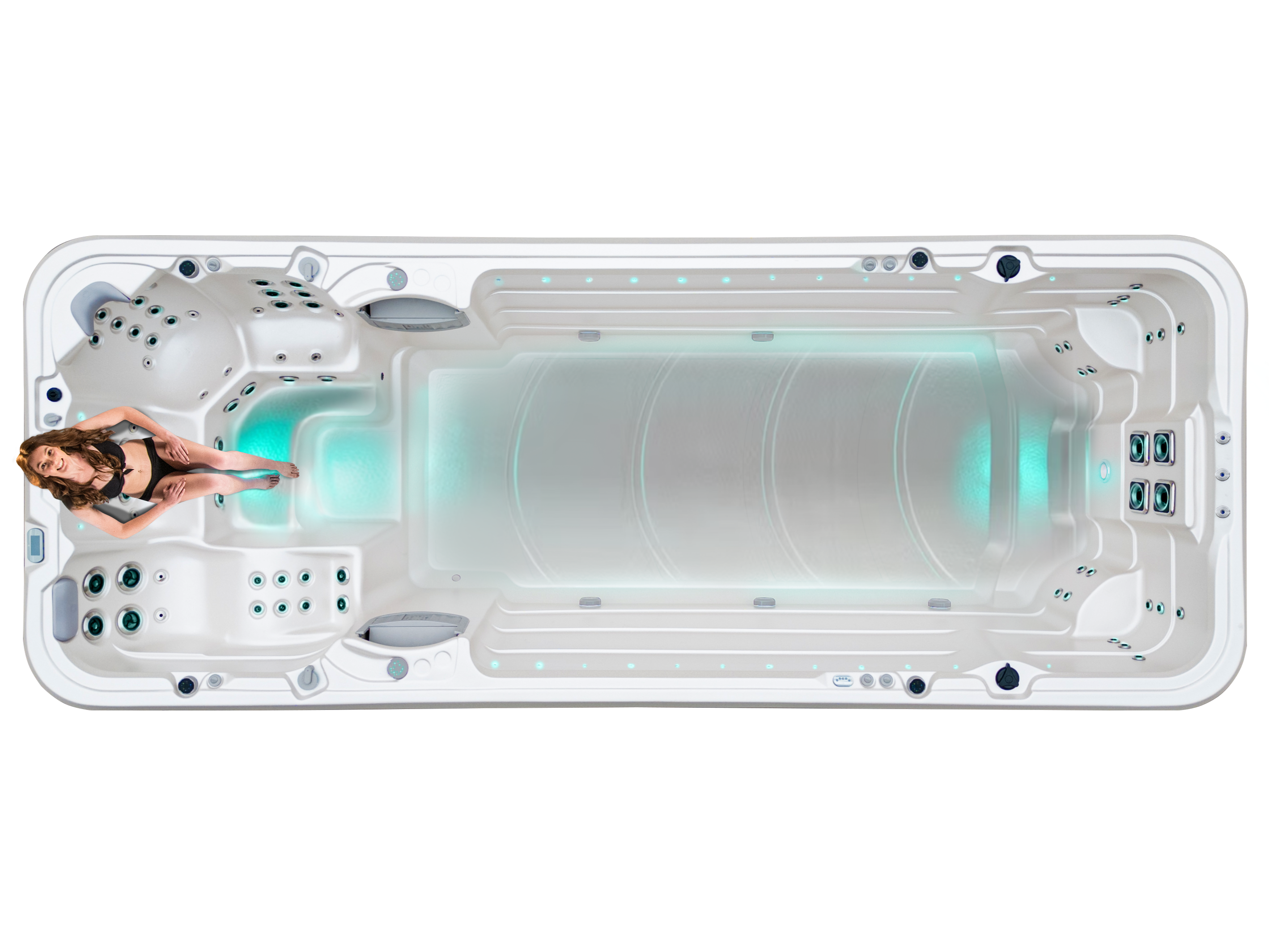

The Vortex Aqualap™ features a range of powerful hydrotherapy jets for a relaxing massage. Aqualap™ Extreme model shown.

Aqualap™ Extreme

Aqualap™ Extreme

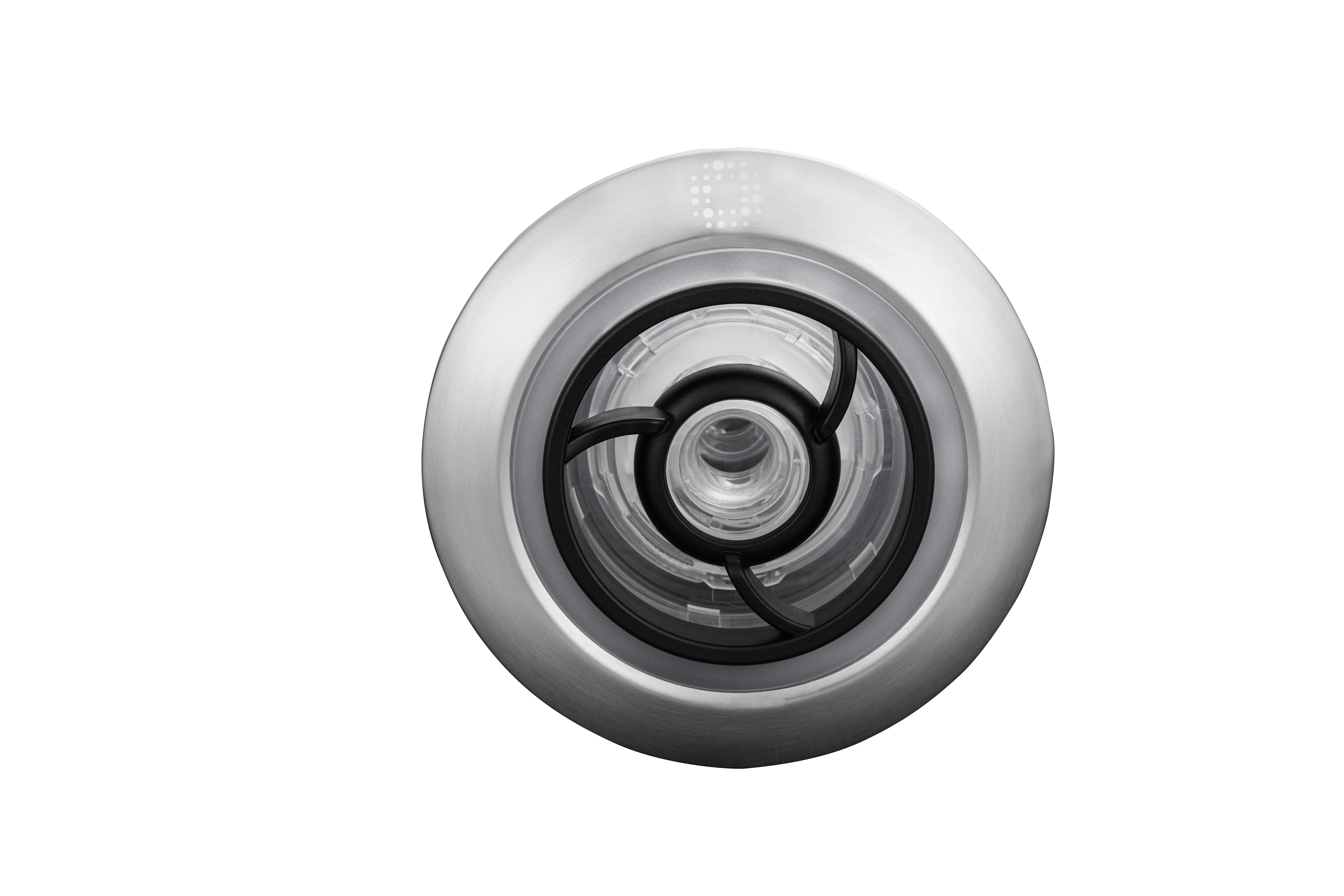

  •  140mm (5.5") Directional Jet
    2 x 140mm (5.5") Directional Jet

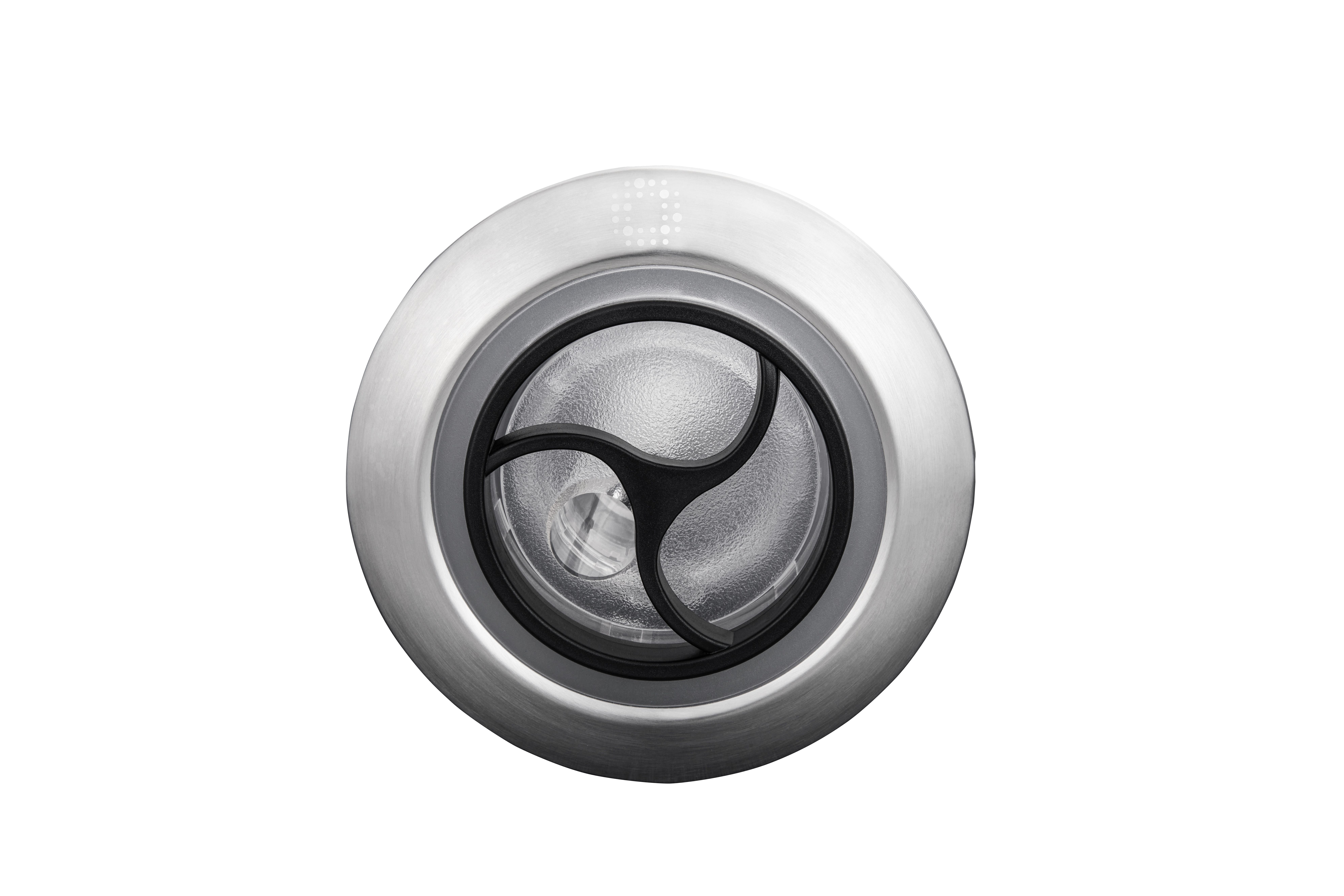

  • 140mm (5.5") Single Roto Jet
    3 x 140mm (5.5") Single Roto Jet

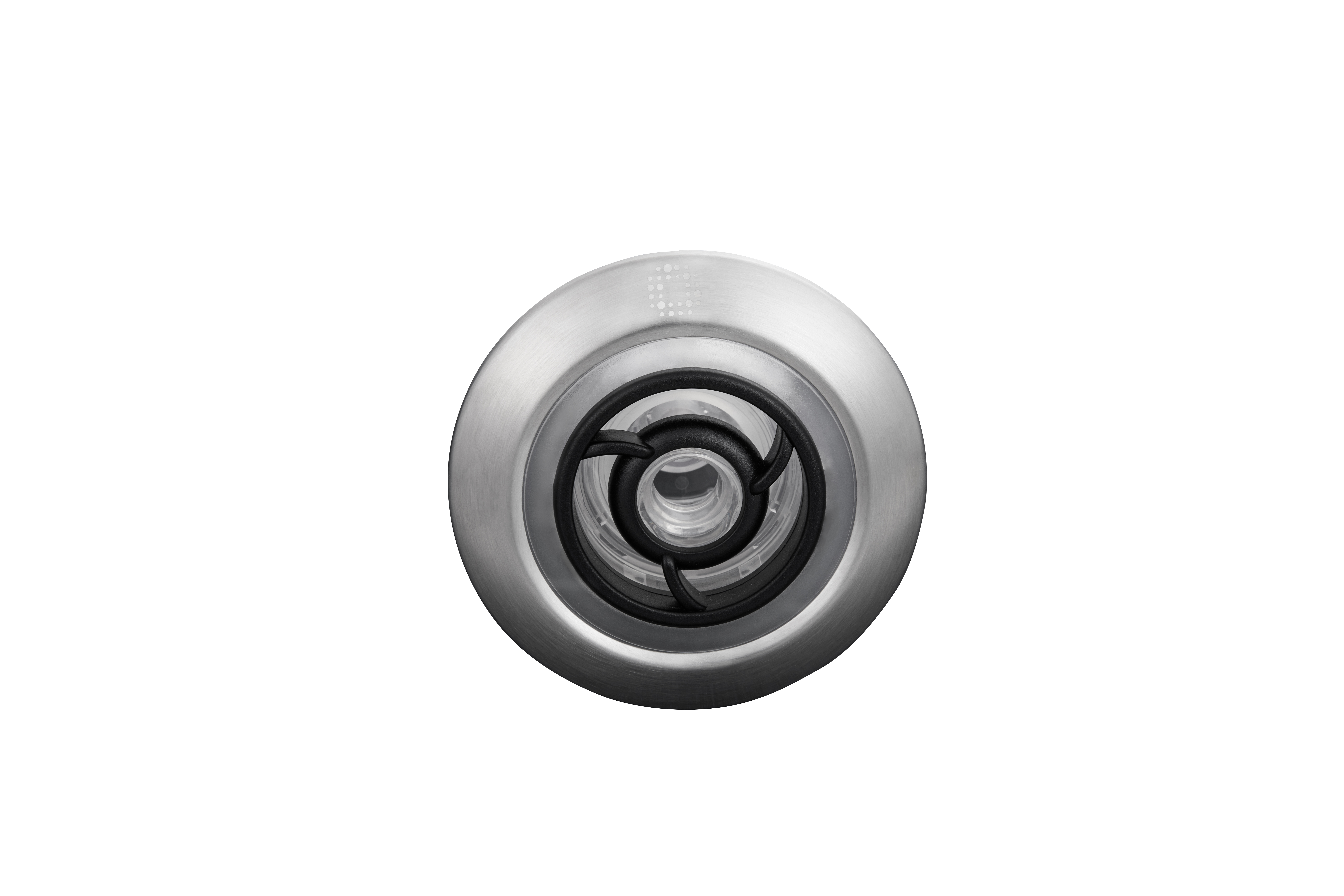

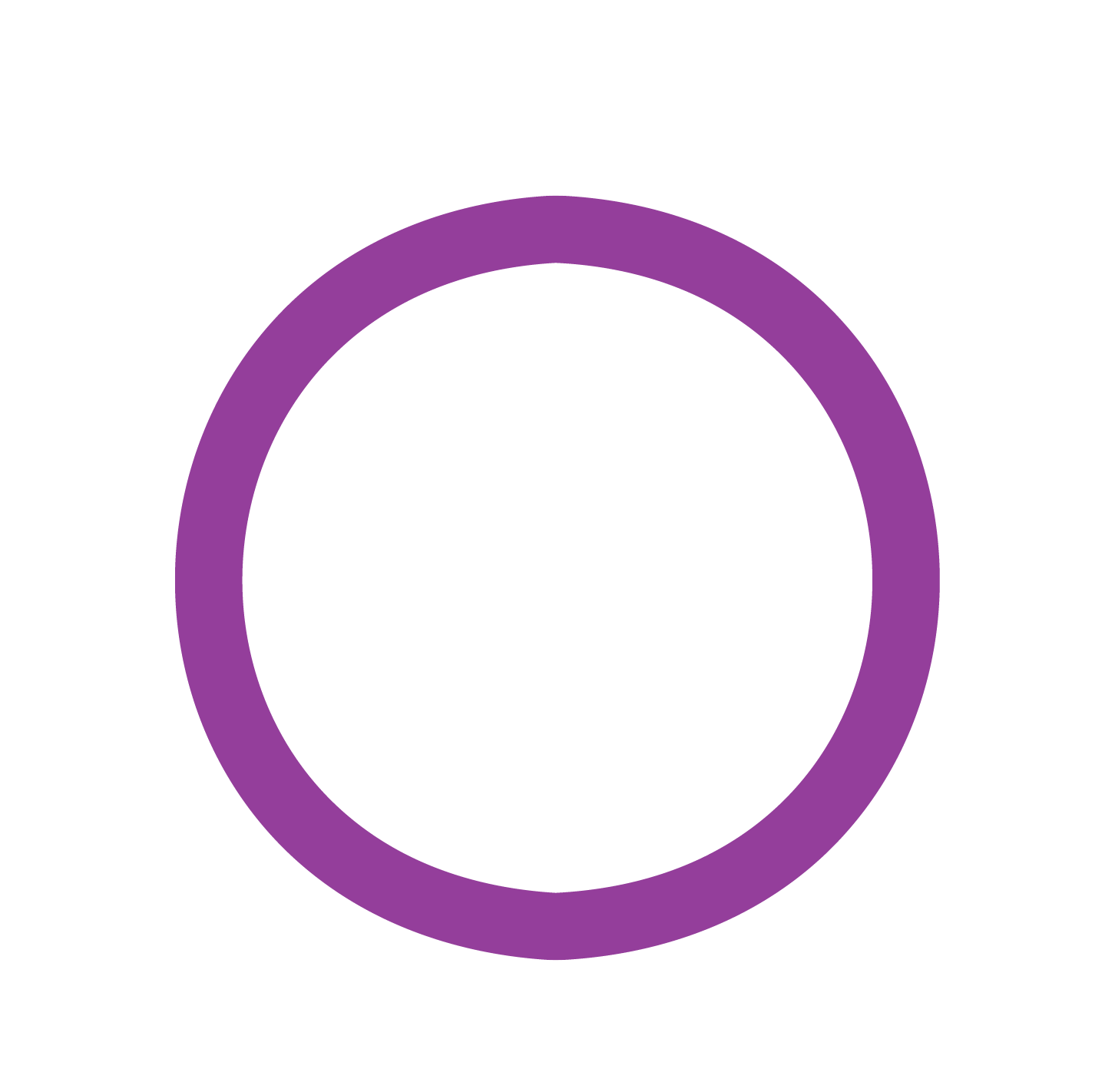

  • 102 mm (4") Directional Jet
    8 x 102 mm (4") Directional Jet

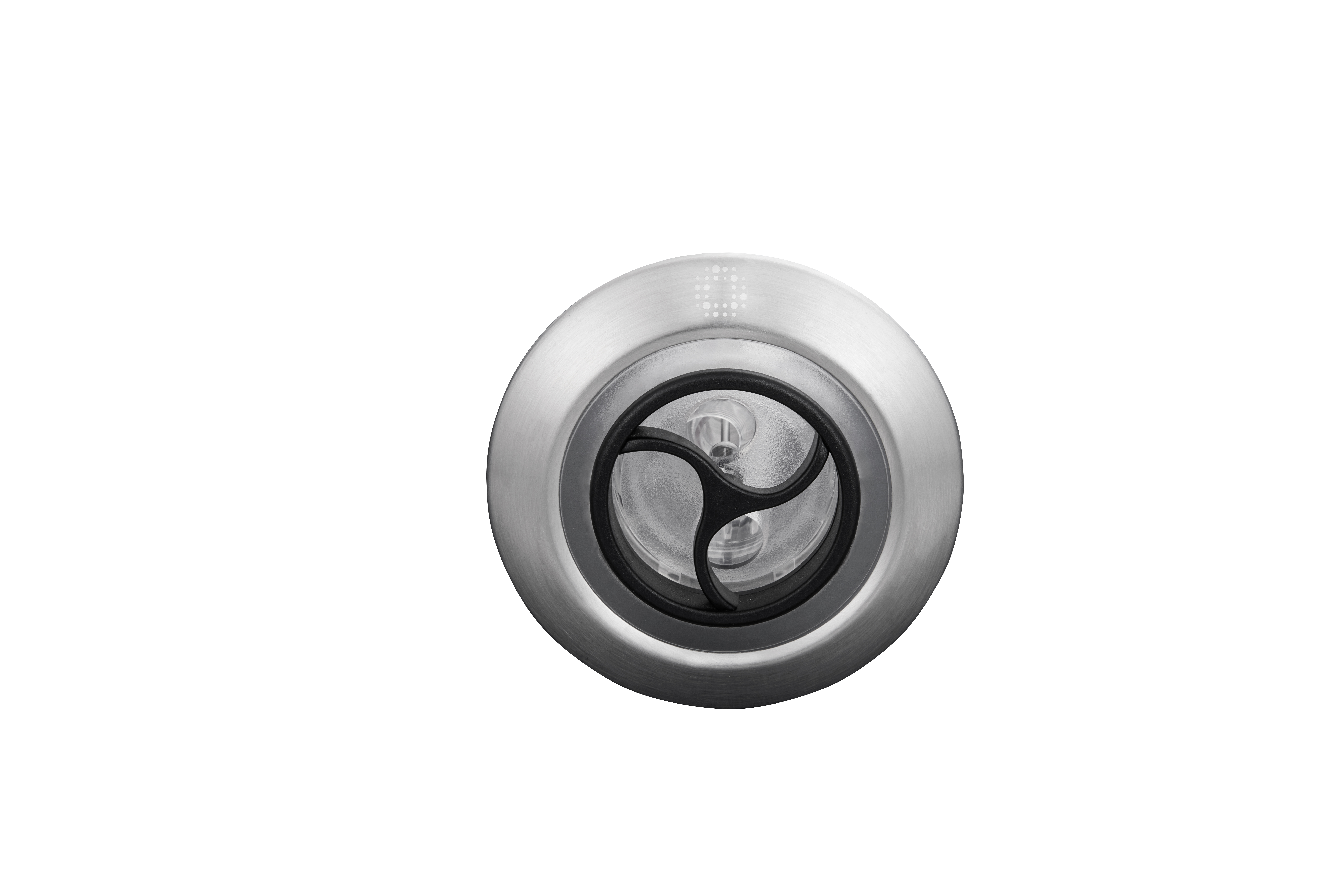

  • 102mm (Jet 4") Single Roto
    10 x 102mm (Jet 4") Single Roto

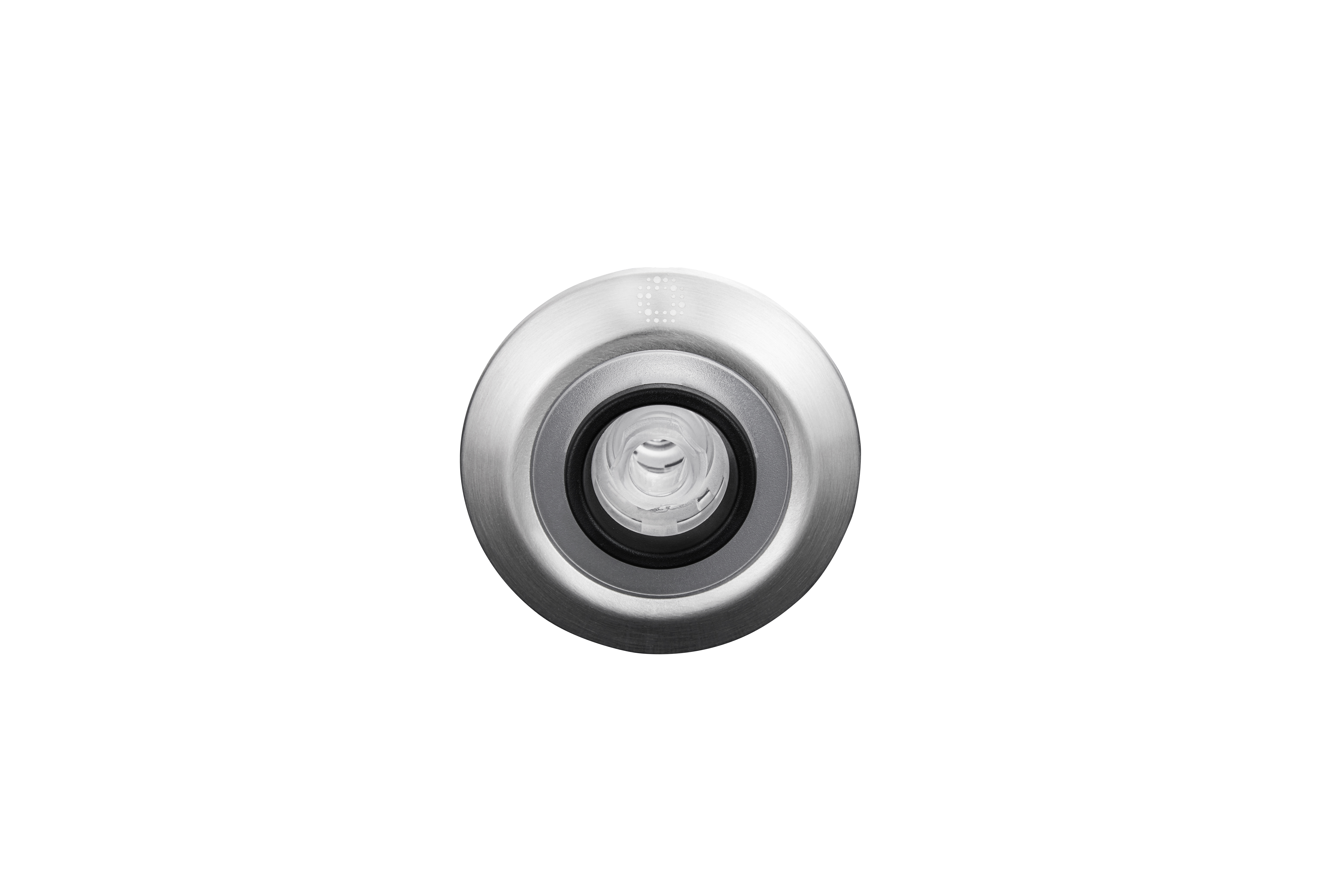

  • 63mm (2.5") Directional Jet
    24 x 63mm (2.5") Directional Jet

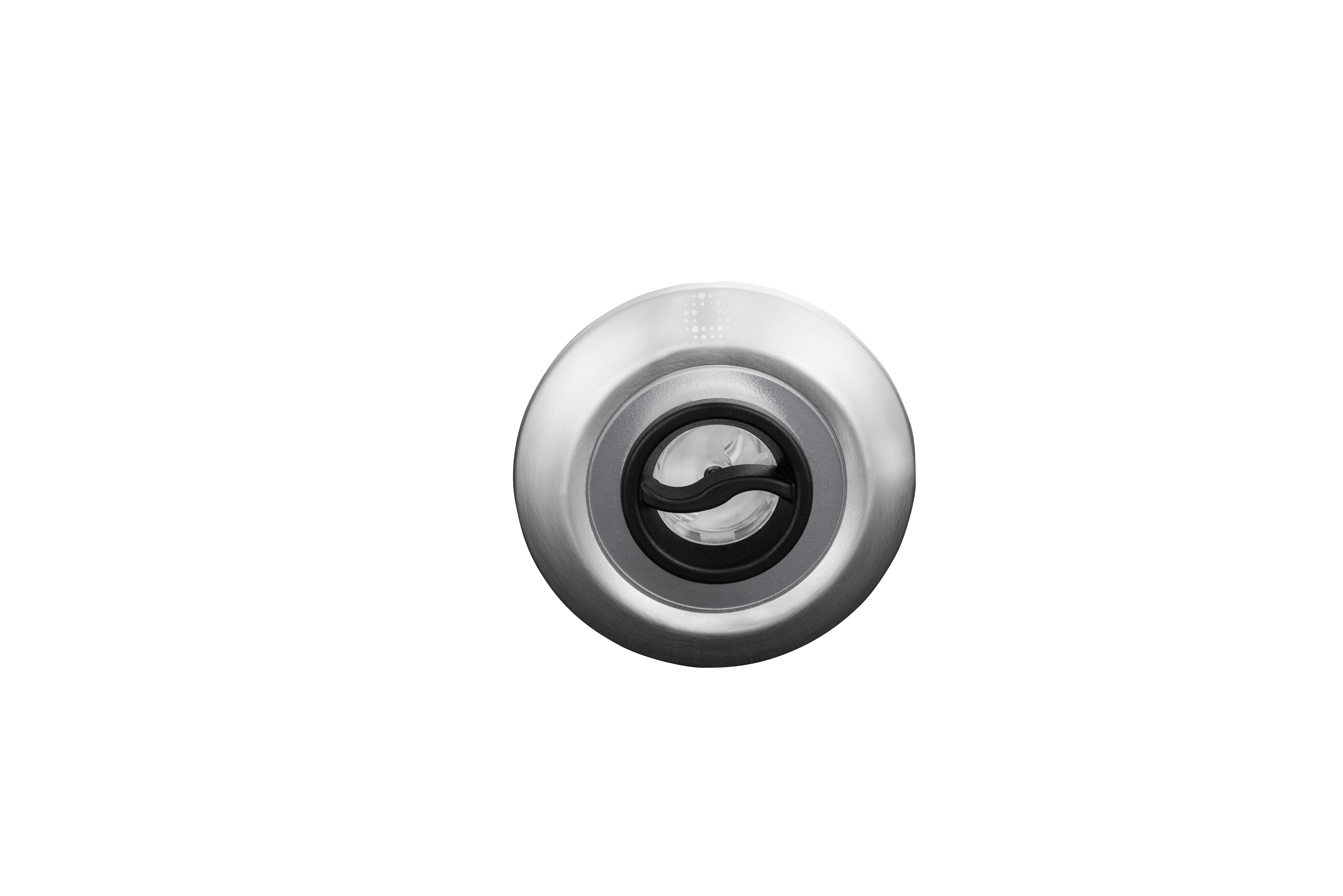

  • 63 mm (2.5") Roto Jet
    16 x 63 mm (2.5") Roto Jet

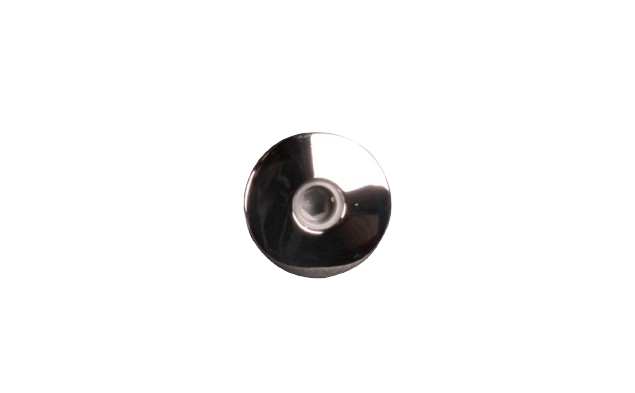

  • 50mm (2") Air Jets
    14 x 50mm (2") Air Jets
  • 127mm(5") Swim Spa Square Jet
    4 x 127mm(5") Swim Spa Square Jet

Similar Swim Spas

You may want to check out these similar spas to compare features and find the right spa for you and your family.

Aqualap™ Swim Spa

Fisher Lap™ Swim Spa

PowerActive™ 19

Seating454
DimensionsFrom 5.90 x 2.30 x 1.30/1.50mFrom 5.875 x 2.295 x 1.49From 5.69 x 2.36 x 1.34m
Volume8500/9720Ltr9038
JetsUp to 813634
Weight (Full)Up to 11,353Kg11.26510412
