Planning for your spa delivery | Pre-Delivery Guide for Spa Owners 2026

Before your spa is installed, please read this guide carefully to help ensure a stress-free delivery and installation. It covers the safety and technical requirements you need to know, including site access, foundation needs, and required clearance around the spa for delivery, cover operation, servicing, and maintenance.

This is especially important if you are building a deck, recessing the spa into a pit, or using a ClearLift™ Automatic Swim Spa Cover. Insufficient clearance can delay installation, restrict servicing, and lead to added costs later.

We recommend confirming your site access, foundation, and model-specific clearance requirements before any building work begins. For exact dimensions, always download your specific model’s details from the Manuals/Tech Pack page before construction starts.

In this pre-delivery guide:

• Introducing your Spa World Concierge
• Important safety information
• What to consider before delivery
• Spa clearance requirements
• ClearLift™ clearance requirements
• Making sure you have a solid foundation
• Arranging delivery of your spa
• Installing an external heat pump

Introducing your Spa World Concierge

Our Spa World Concierge Program is a personalised customer-care service designed to make your spa purchasing and ownership experience simple and stress-free.

When you buy a spa or swim spa from Spa World, we will match you with a single point of contact–aka your Spa World Concierge–who has the expertise to be your personal guide from purchase through to post delivery.

Watch the video below to learn more about the Spa World Concierge service.

Back to top

Your Spa World Concierge will help you with:

• Post-purchase support. Removing any uncertainty and supporting you after you have ordered your spa or swim spa.
• Delivery advice. Helping you choose the best location for your spa or swim spa.
• Property access info. Advice around the info we need from you to ensure a smooth, safe delivery.
• Delivery options. Helping you determine the best delivery method.
• Important updates. Providing you with up to date arrival and delivery information for your spa.
• Spa set up. They will remotely help you get your spa up and running.
• All your questions. Once your spa is installed and operating, you may have more questions. That's okay! Your Spa World Concierge is here to help you.

Important safety information for spa owners

Owning a spa or swim spa should be a relaxing and fun experience. To make sure it stays that way – please read this safety information carefully, before your spa is delivered.

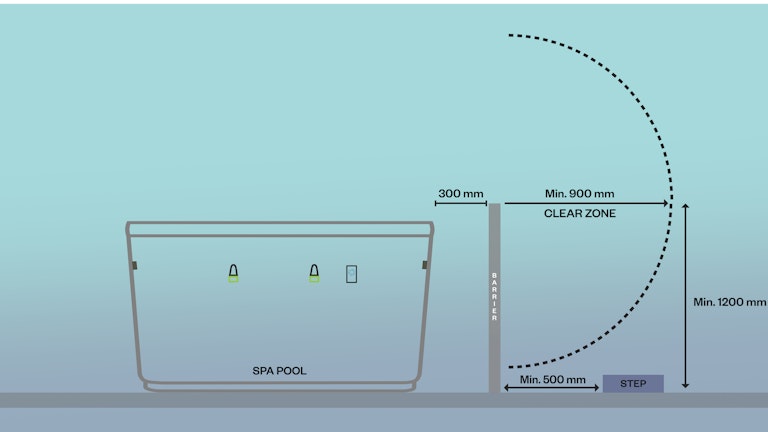

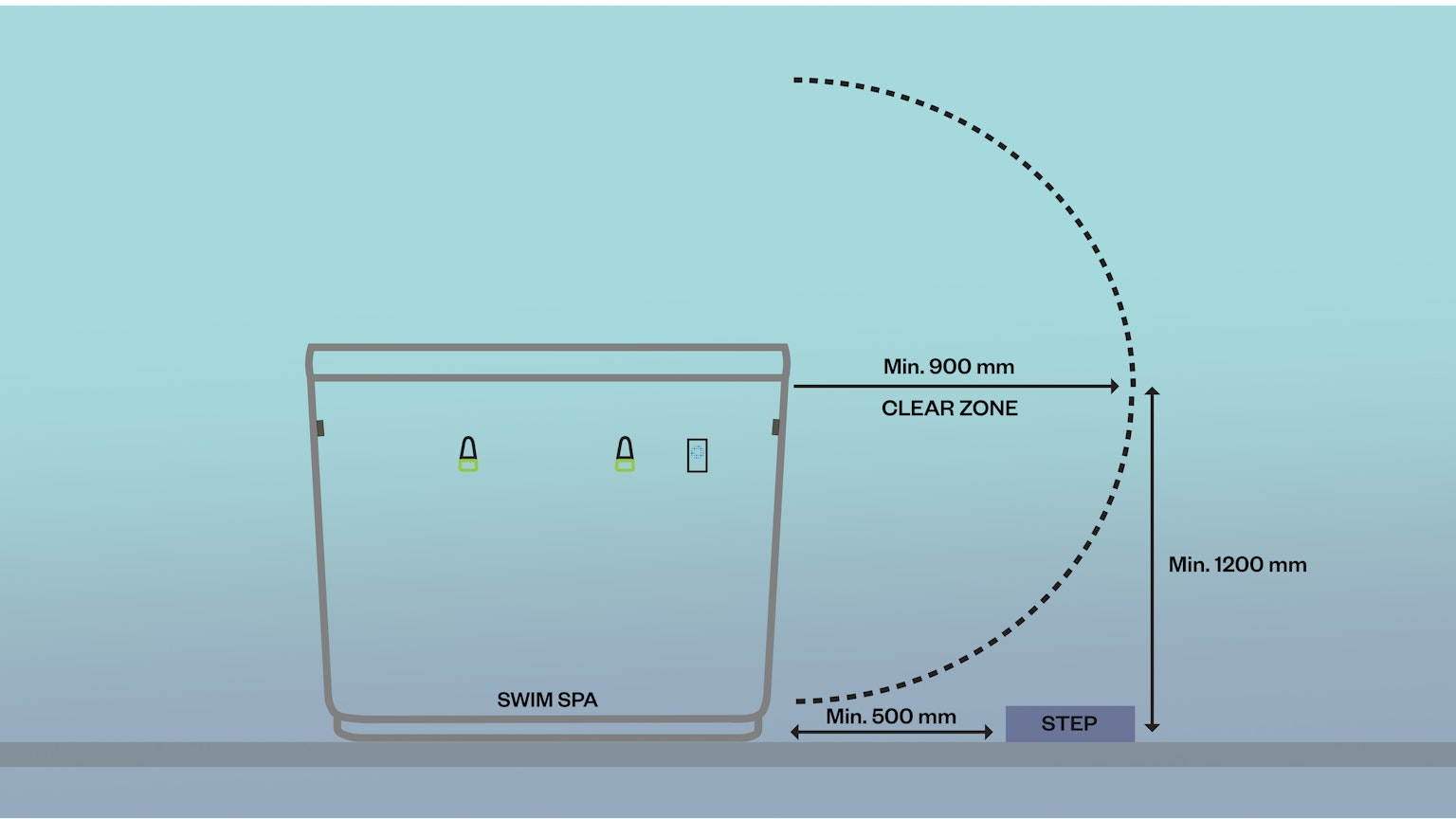

Spa pool barriers and fencing

Local pool safety guidelines must be followed for all pools, spa pools and swim spas. Fencing and barrier rules can differ from state to state. Consult with your local council to find out the fencing rules in your area.

Back to top

Electrical requirements and considerations

Never position a spa, swim spa or any other type of pool near overhead cables or power lines.

All electrical work needs to be carried out by a licensed electrician and must conform to all national, state and local electrical codes in effect at the time of installation. If the supply cord on your spa is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

If you are installing any metallic item within arm’s length of a spa or swim spa you may require equipotential bonding to be performed by a licensed electrician.

Please click the button below for more details.

Please note that organising an electrician and associated costs are the responsibility of the spa owner. Spa World does not offer an electrical service.

Refer to your spa model tech pack for electrical information. Please provide this tech pack to your electrician.

Delivery safety considerations

Our delivery team will assess your site at the time of delivery and will make the final determination if the site is safe. If you have questions or concerns, please contact your Spa World Concierge.

Back to top

Deciding where to position your spa

Where your spa or swim spa is positioned on your property is the second most important decision you’ll make – after deciding which spa to buy. In fact, some would say it is the most important decision as the position often determines the size and type of spa or swim spa you buy.

Back to top

What to consider before delivery

Property access information

Before we can deliver your spa, we need to know what the access to your property is like and if there are any hazards or specific equipment requirements our delivery team should be aware of. Without your property access details, we cannot deliver your spa.

Please watch this short video below to learn about the information we need you to send us, to ensure a safe and smooth delivery.

Back to top

Making sure you have a solid foundation

Your spa needs a solid, flat, level foundation.

If the foundation is inadequate, it may shift or settle after the spa is in place causing stress to the spa shell and cabinet which will void the warranty.

Always consult your building professional for advice about your specific circumstances. All work needs to be carried out within the guidelines of your local building regulations.

Refer to your spa model specification sheet for weights and dimensions. Simply search the model name on the Spa World website and scroll to the specification section to download the specification and tech pack.

The three most common foundation types:

Concrete slabs. Portable spas under 3.5m need 100mm minimum reinforced concrete. Swim spas and spas larger than 3.5m will need a 150mm minimum reinforced concrete pad.

Timber decks. Decks must be designed and built to local building regulations by a registered builder.

Inground spa and swim spa pits. If your spa or swim spa is in a pit you need to consult with your local builder/contractor regarding drainage and concrete slab.

Is there adequate drainage for flood protection?

All spas and swim spas must have adequate drainage around the foundation to ensure that the spa or swim spa is not flooded. Consult your builder or landscaper. Flooding is not covered under your spa warranty.

Can the spa be accessed for service and maintenance?

Your spa must be positioned to allow for adequate service access on all sides of the spa. It is imperative that all cabinet panels around your spa can be accessed and removed for servicing.

Specifically, careful consideration is required when installing your spa in a deck.

ClearLift™ clearance considerations

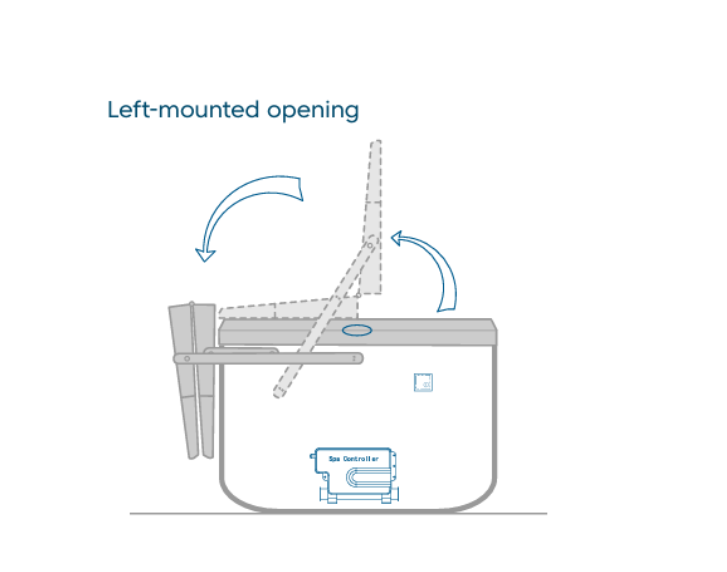

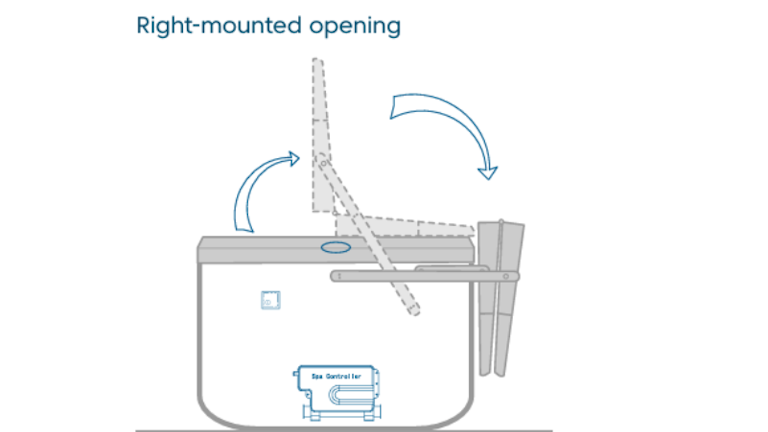

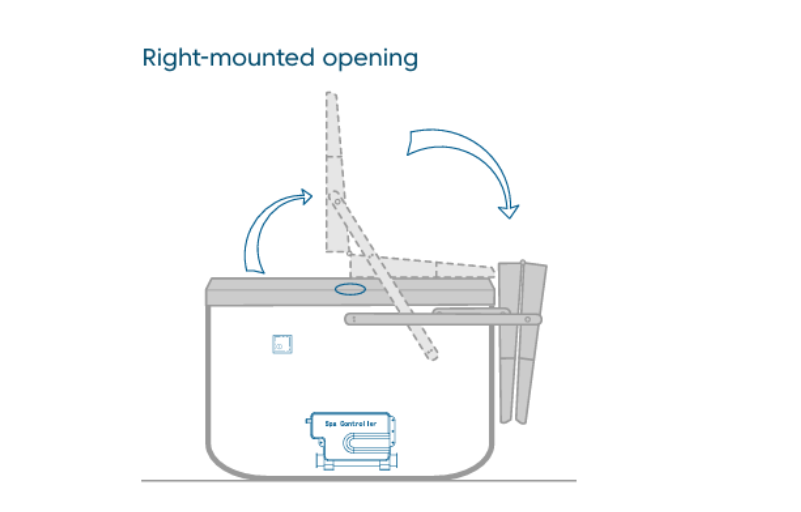

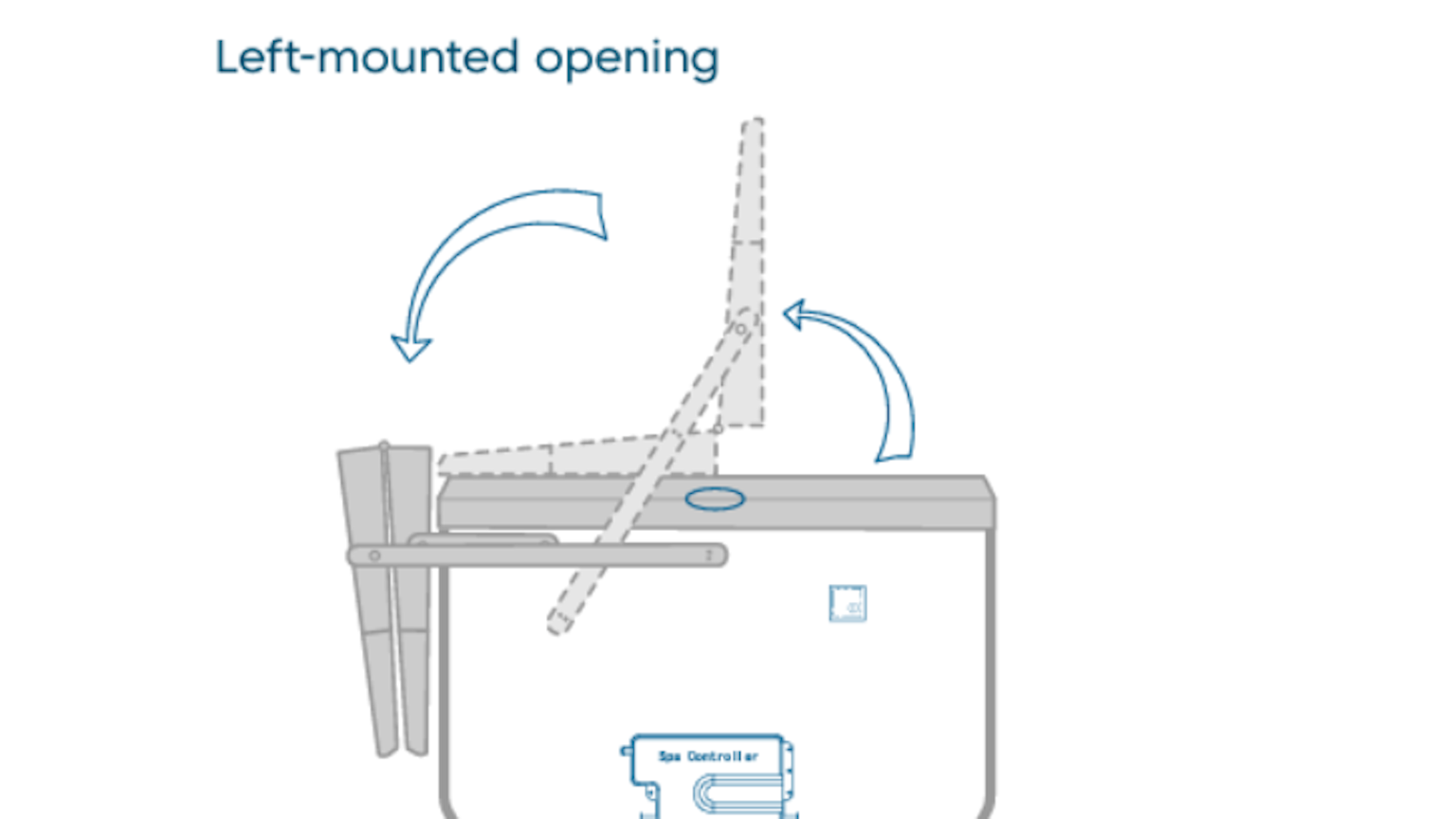

If your swim spa includes an optional ClearLift™ cover, it is important to understand how the cover opens and how much surrounding space is required before installation. The diagrams below show the difference between left-mounted and right-mounted ClearLift™ configurations and help illustrate why clearance planning matters for cover movement, service access and practical day-to-day use.

Note: ClearLift™ clearance requirements and measurements vary depending on your swim spa model and configuration. Before building a deck, pit or any surrounding structure, always check your specific model’s Tech Pack for the exact dimensions, opening direction, service-side access requirements and keypad positioning.

ClearLift™ opening allowance

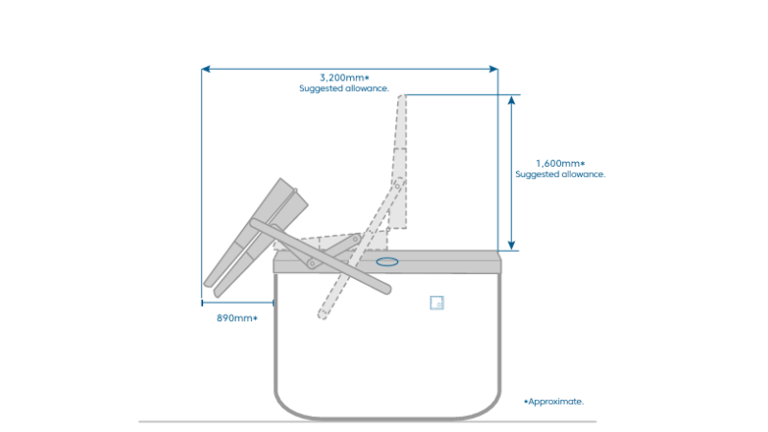

If your swim spa includes an optional ClearLift™ cover, it is important to allow enough surrounding space for both the cover opening movement and the fully opened cover position.

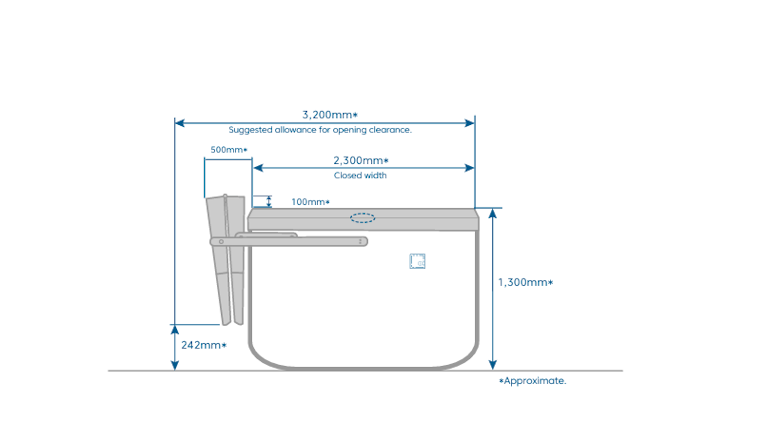

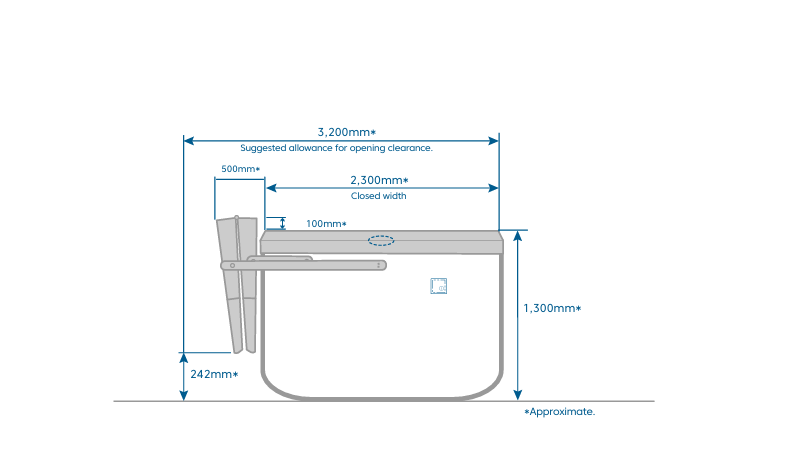

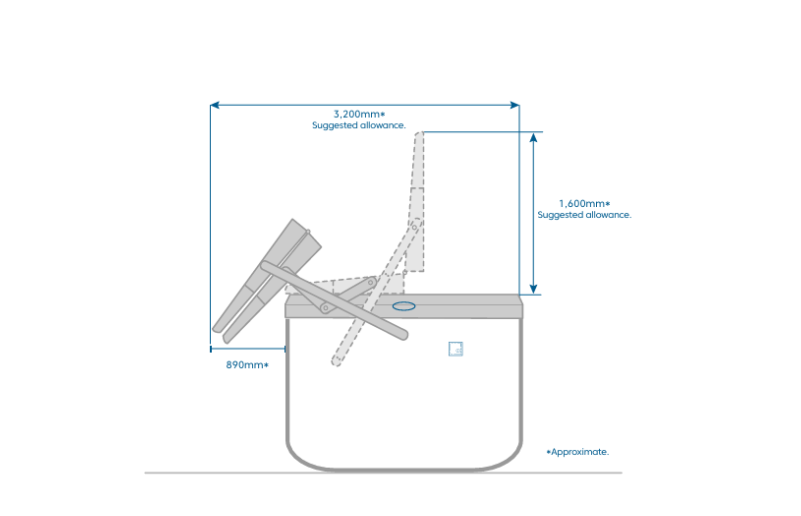

The diagrams below show the approximate clearances for a left-mounted ClearLift™ cover on a swim spa with a height of 1300 mm.

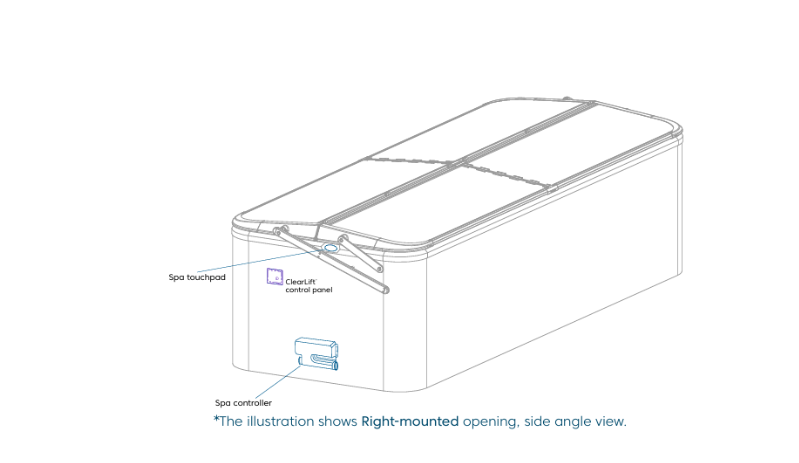

ClearLift™ keypad controller position

To meet safety and operational requirements, the ClearLift™ keypad controller must be securely mounted on the spa cabinet. Remote installation of the ClearLift™ keypad controller is not permitted.

The ClearLift™ keypad controller is installed with the bottom of the controller 220 mm below the lip of the spa. Any decking or surrounding structure must remain clear of this area.

As swim spa models vary, cabinet panel separation points can differ depending on the spa height:

• 1300 mm high swim spas: end cabinet panels are separated at 570 mm down from the bottom of the lip of the shell and 630 mm up from the bottom of the swim spa.
• 1500 mm high swim spas: end cabinet panels are separated at 670 mm down from the bottom of the lip of the shell and 730 mm up from the bottom of the swim spa.

Always check your specific model’s Tech Pack before building decking or other surrounding structures.

Need help in choosing the best heat pump for your spa? Try the Spa World Heat Pump Calculator now!

Back to top

Wondering what to do once your spa arrives?

Click the button below to check out our articles and videos on what to expect at handover plus how to set-up and get the most out of your spa or swim spa.

Need more help?

We hope this information has been helpful. If you have any questions or concerns over the delivery or installation of your new spa or swim spa, please contact your Spa World concierge.
